NOVEL / TEXTILE & GARMENT MEASUREMENT
Mobile force and pressure measurement.
For textiles, garments, and the way we move.
● Thin. Adaptable. Fully calibrated.
THE TEXSENS SYSTEM
01 — MOBILE MEASUREMENT
At the point of contact.
From sensor to screen.
Ø 10 mm
Sensor diameter
1–10 kPa
Standard pressure range
50 Hz
Standard scan rate
01 / SMALL SENSOR. BIG PICTURE.

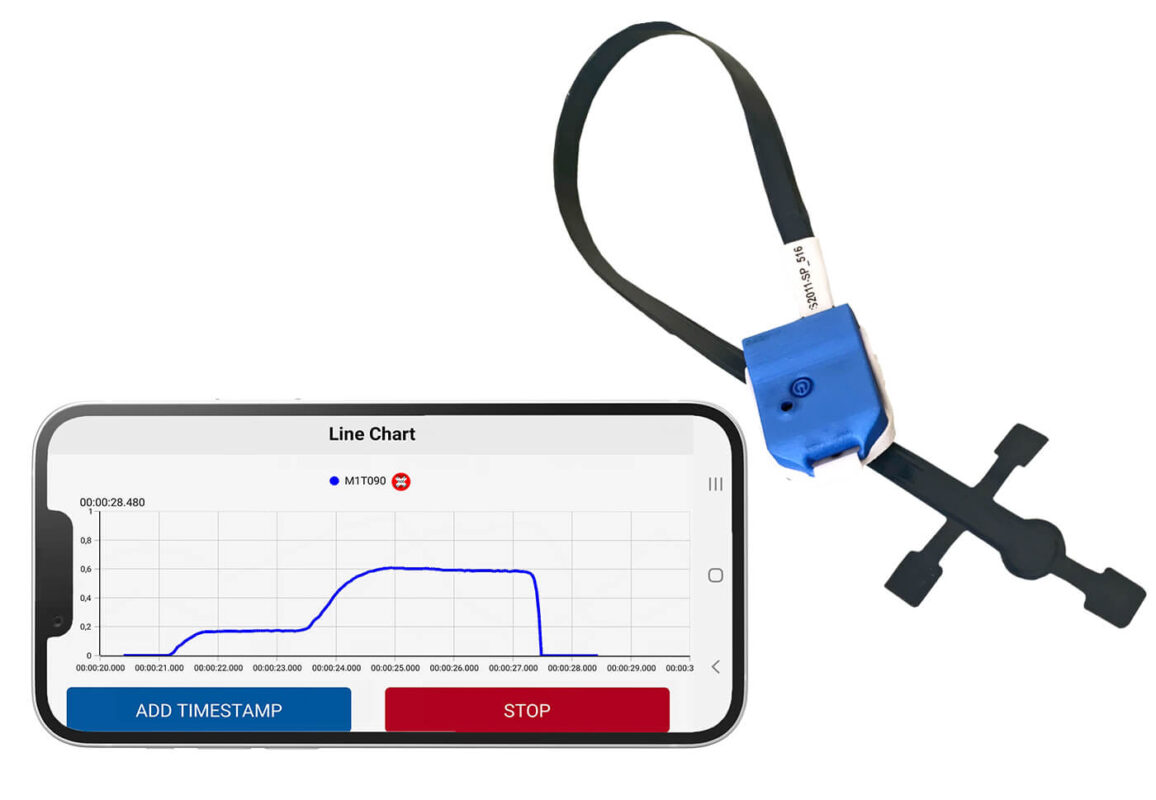

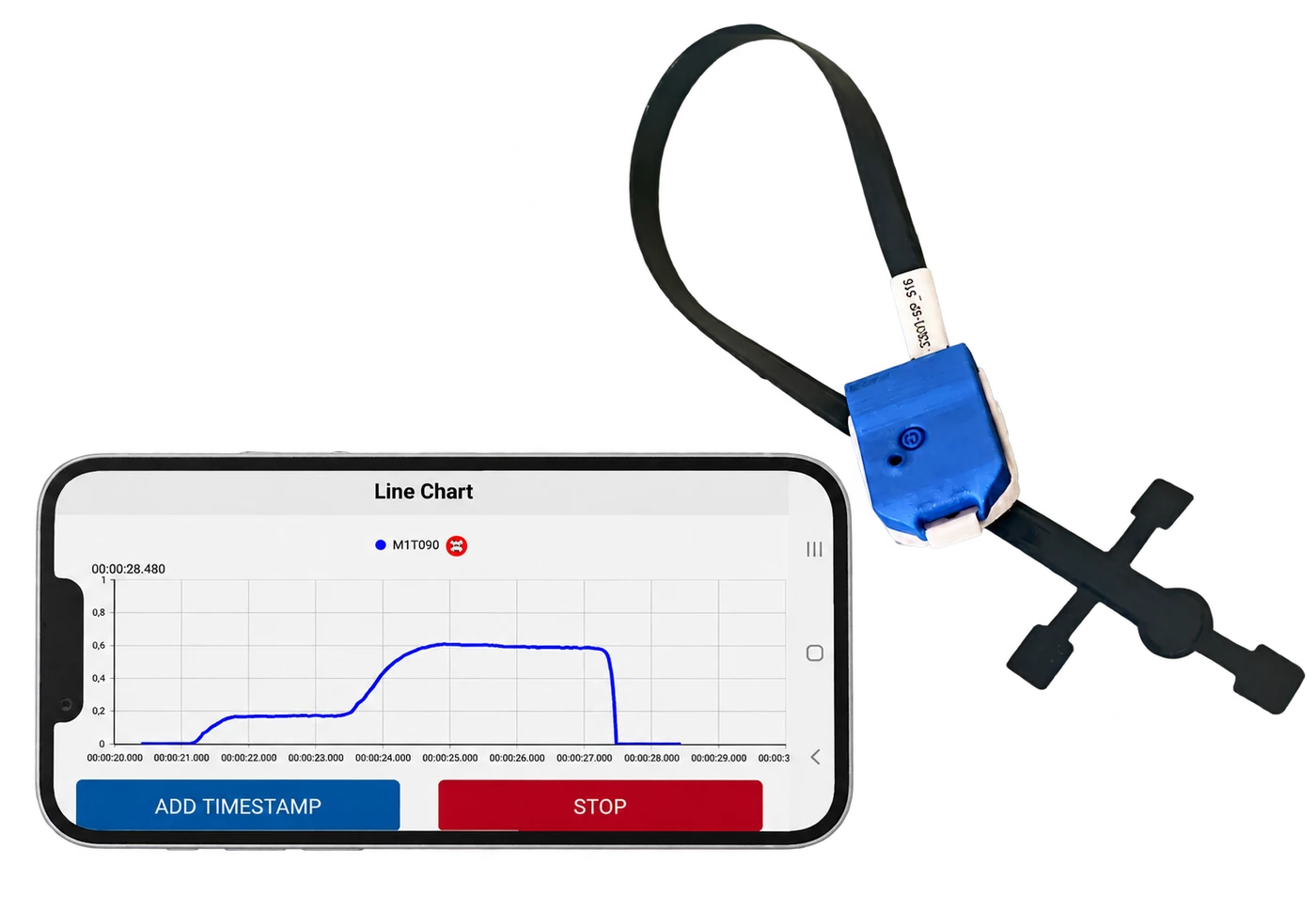

The texsens force and pressure measuring device was developed by novel for mobile load measurement in the textile and garment industry. The texsens utilizes one fully calibrated, capacitive sensor which is connected to the small and lightweight loadpad electronics
02 / MADE FOR MOVEMENT
The texsens sensor is used for measurements under compression clothing when very low contact pressures are to be detected during body movement. As the sensor is exceptionally thin and highly adaptable there is minimal disturbance to the measurement interface or the proprioceptive perception.
The texsens sensor is the ideal solution for highly accurate measurement and complete assessment of force production under garments where very low contact pressures occur and precision is required.

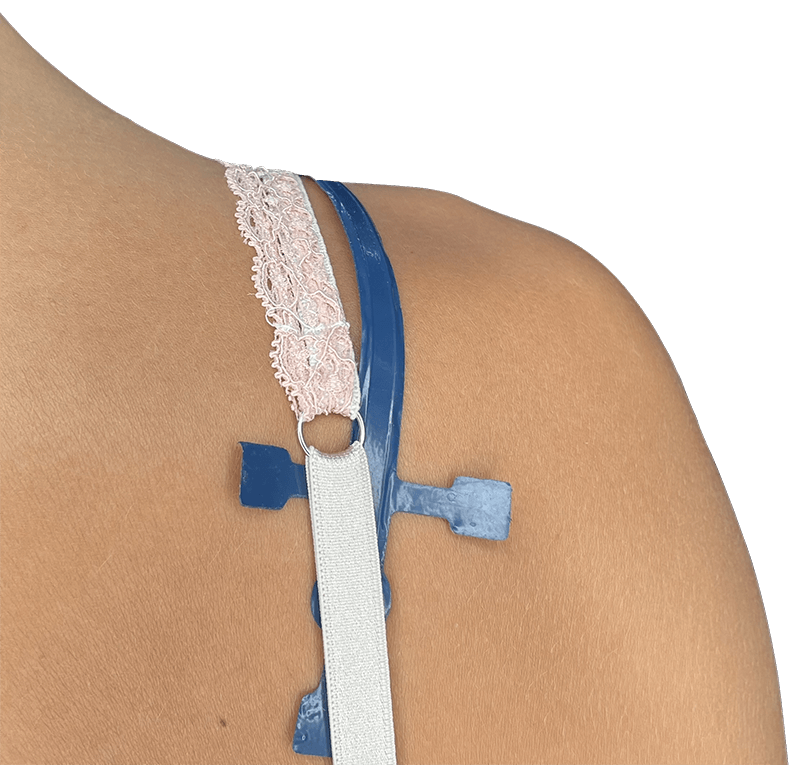

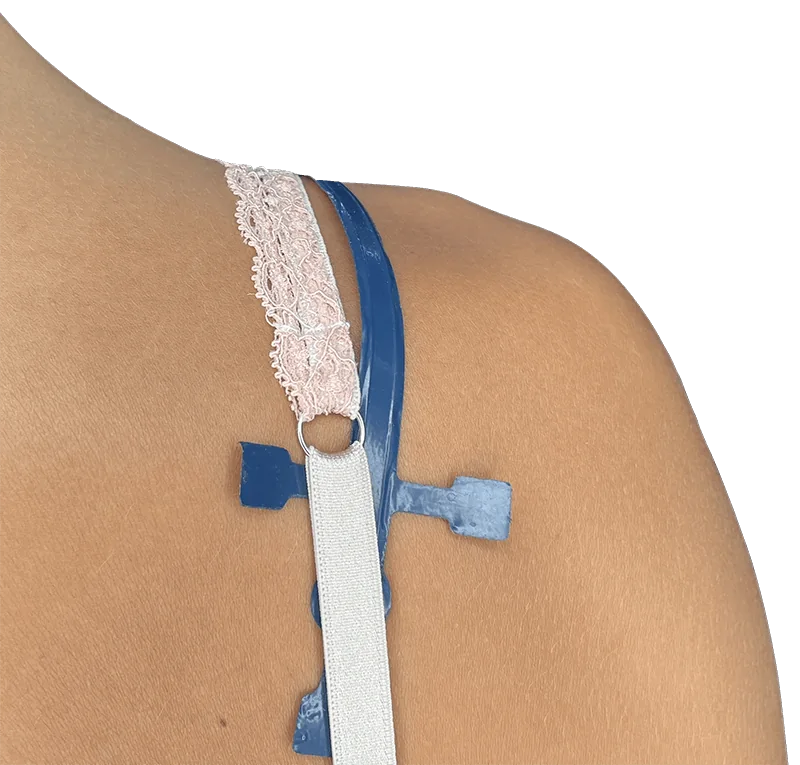

GARMENT STRAP
01
Force measurement beneath a garment strap.

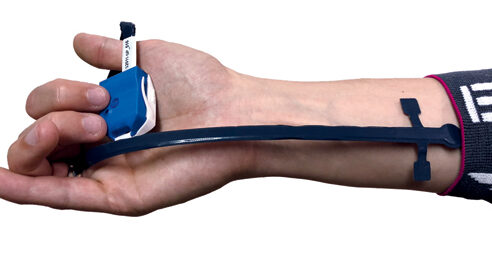

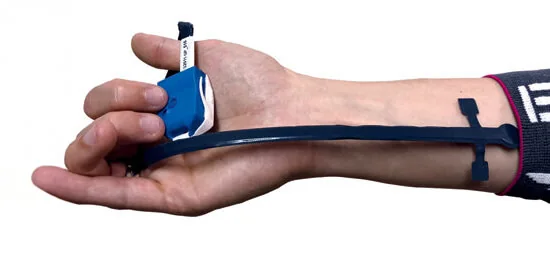

ARM GARMENT
02
Measuring contact pressure under garments.
03 / TEXSENS SOFTWARE
Mobile measurement. Real-time insight.

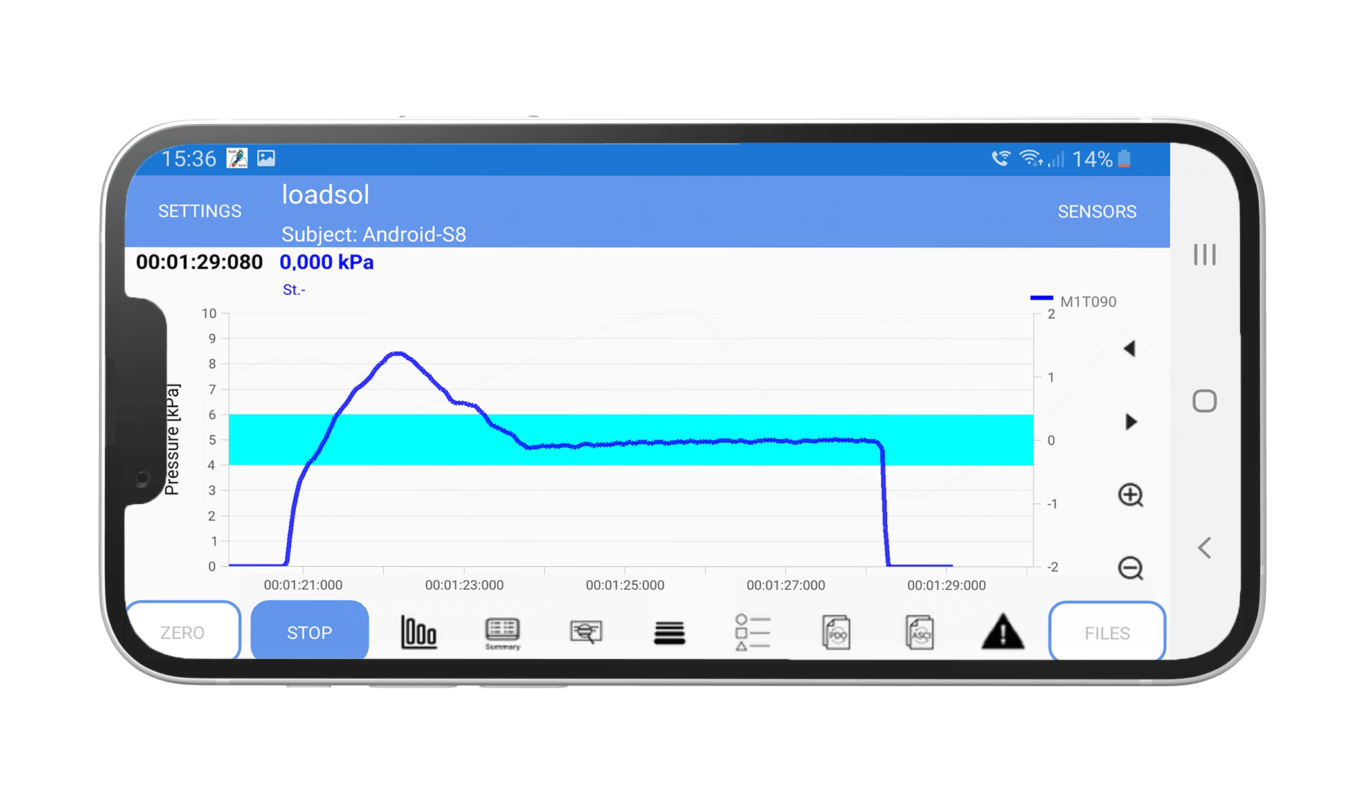

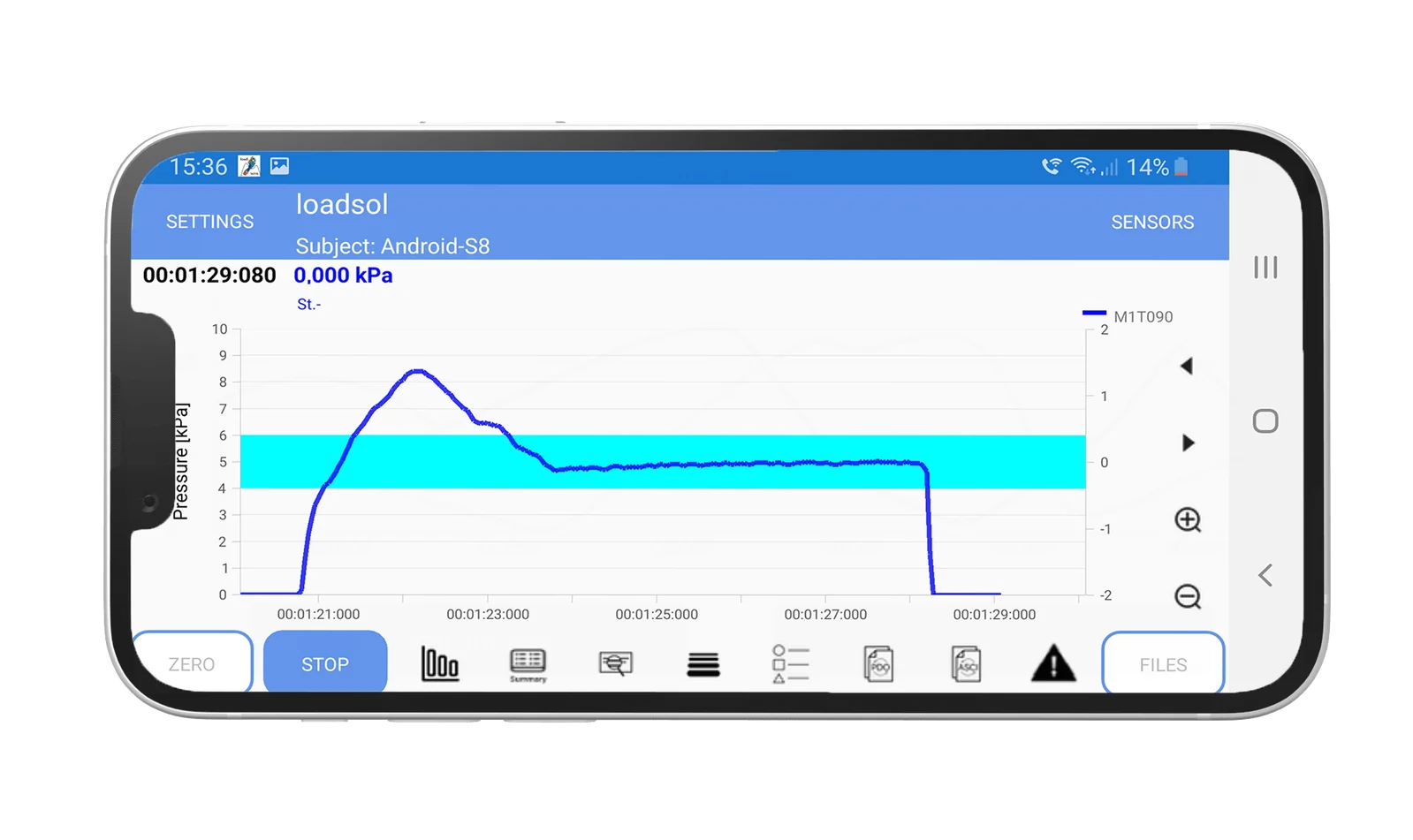

Existing texsens measurement example.
Mobile data acquisition, real-time transmission via Bluetooth, and data evaluation is captured with the loadapp for mobile and tablet devices.
The app displays force over time and allows the definition of audio or visual feedback thresholds. The measured data can be stored on the mobile device and to the cloud and also transferred to a computer for detailed analysis.
01 / CONNECT
Mobile data acquisition and real-time transmission via Bluetooth.
02 / FOLLOW
View force over time and define audio or visual feedback thresholds.
03 / EVALUATE
Store data on your mobile device or in the cloud, and transfer it to a computer for detailed analysis.
IN MOTION / THE SYSTEM AT WORK
Compression elbow support with a force sensor.
04 / THE DETAILS THAT MATTER
Technical data of the texsens-g sensor.
Ø 10mm
Sensor diameter
| sensor size (mm) | Ø 10 |
|---|---|
| strap length (mm) | 400 |
| electronics size (mm) | 30 x 45 x 15 |
| scan rate (Hz) | 50 (standard) |
| pressure range (kPa) | 1-10 (standard) |
| transmission | Bluetooth LE |
| operating devices | iPhone, iPad, iPod touch, Android smart devices |
| power supply | 3V coin cells |
05 / ART IN SCIENCE
Scientific publications using texsens.
2024
JOURNAL ARTICLE
Kyzymchuk O, Riabchykov M, Kyosev Y, Melnyk L, Boll J.
Fibres and Textiles / Vlákna a textil . 2024;31(2):50–55. DOI: 10.15240/tul/008/2024-2-007
2025
JOURNAL ARTICLE
Li Q, Che K, Yu W, Song W, Zhou Y.
Sensors . 2025;25(15):4875. DOI: 10.3390/s25154875. Published 7 August 2025
06 / TAKE A CLOSER LOOK

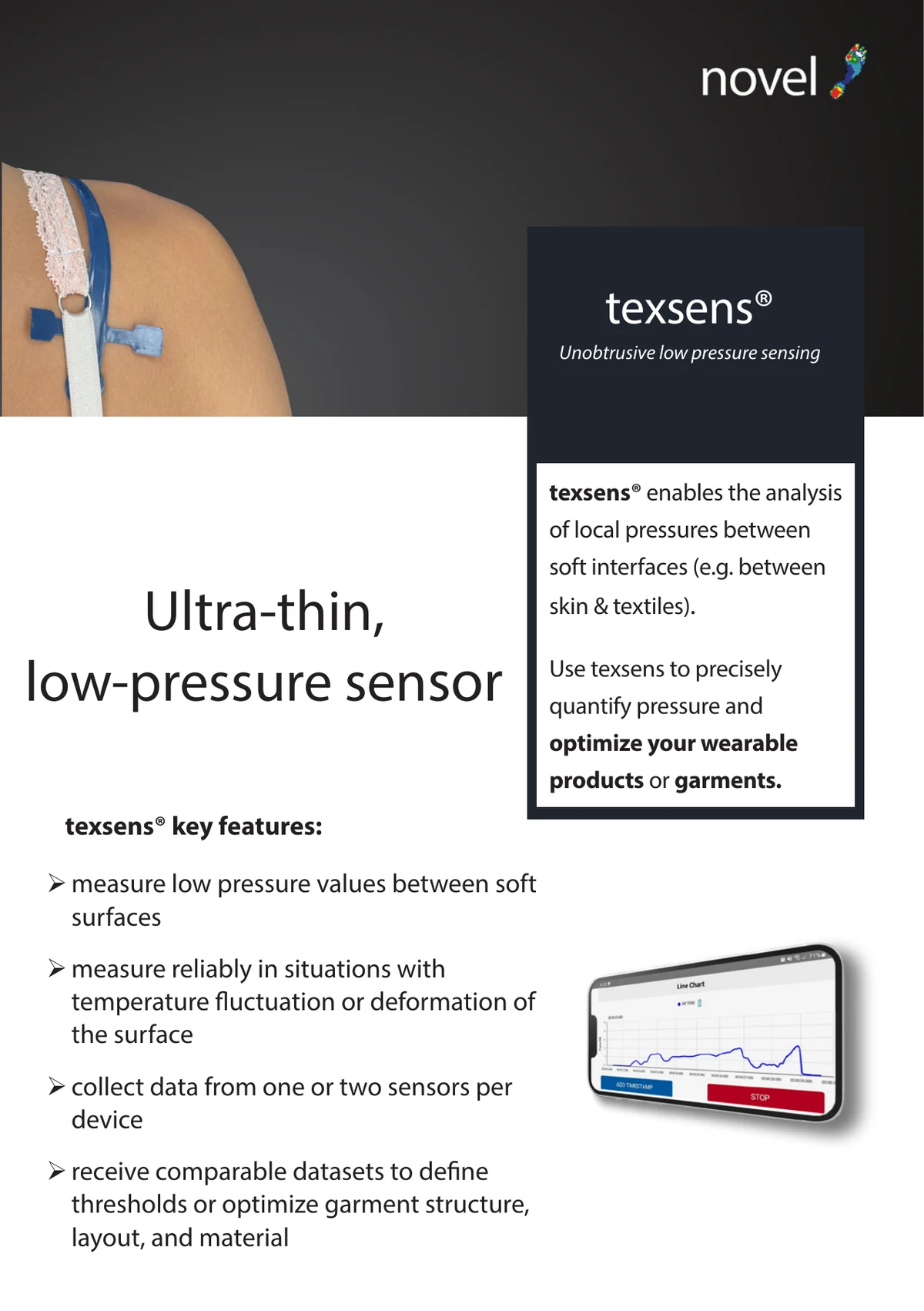

Explore texsens in our English brochure.
NOVEL / LET’S TALK ABOUT YOUR MEASUREMENT
Find out how texsens can support your textile and garment measurements.
