Sensor overview

Here you can find an overview of all our sensor designs. In the first section you can find the sensors sorted by parameters. In the second section, sensors are organized by name and the drawings / outlines.

Back to products

Sensors by parameters:

sensor numbernamesensor area
[mm²]
number of sensorssize of a sensor
[mm²]
resolution [sensor/cm²]pressure range
[kPa]
thickness (w/o cover)
[mm]

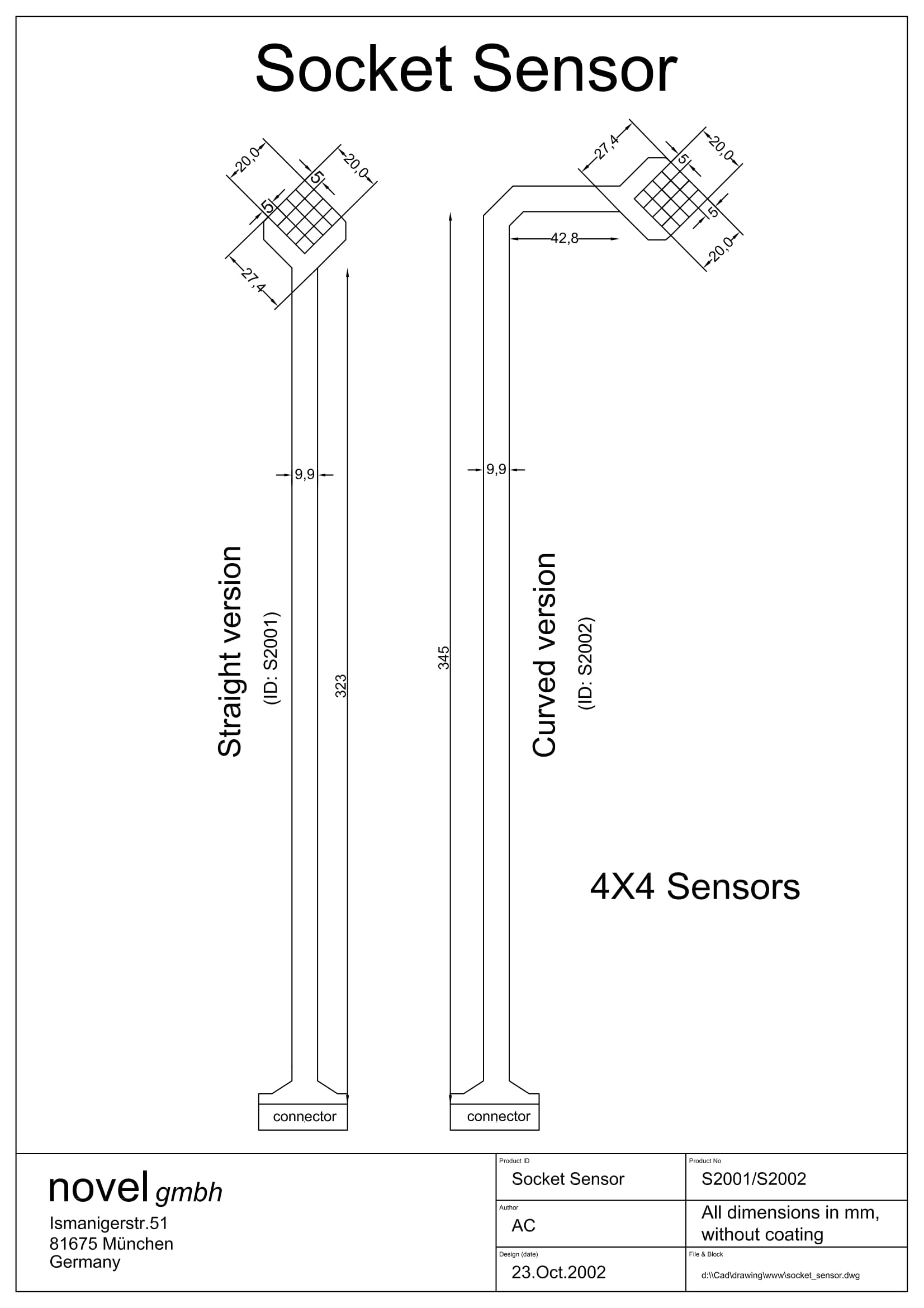

S2001 Socket Sensor 20 x 204 x 45 x 5420 - 600< 1.0
S2001 LPSocket Sensor (LP)20 x 204 x 45 x 541 - 60 / 3 - 200< 1.0
S2002 Socket Sensor C20 x 204 x 45 x 5420 - 600< 1.0
S2002 LPSocket Sensor C (LP)20 x 204 x 45 x 541 - 60 / 3 - 200< 1.0

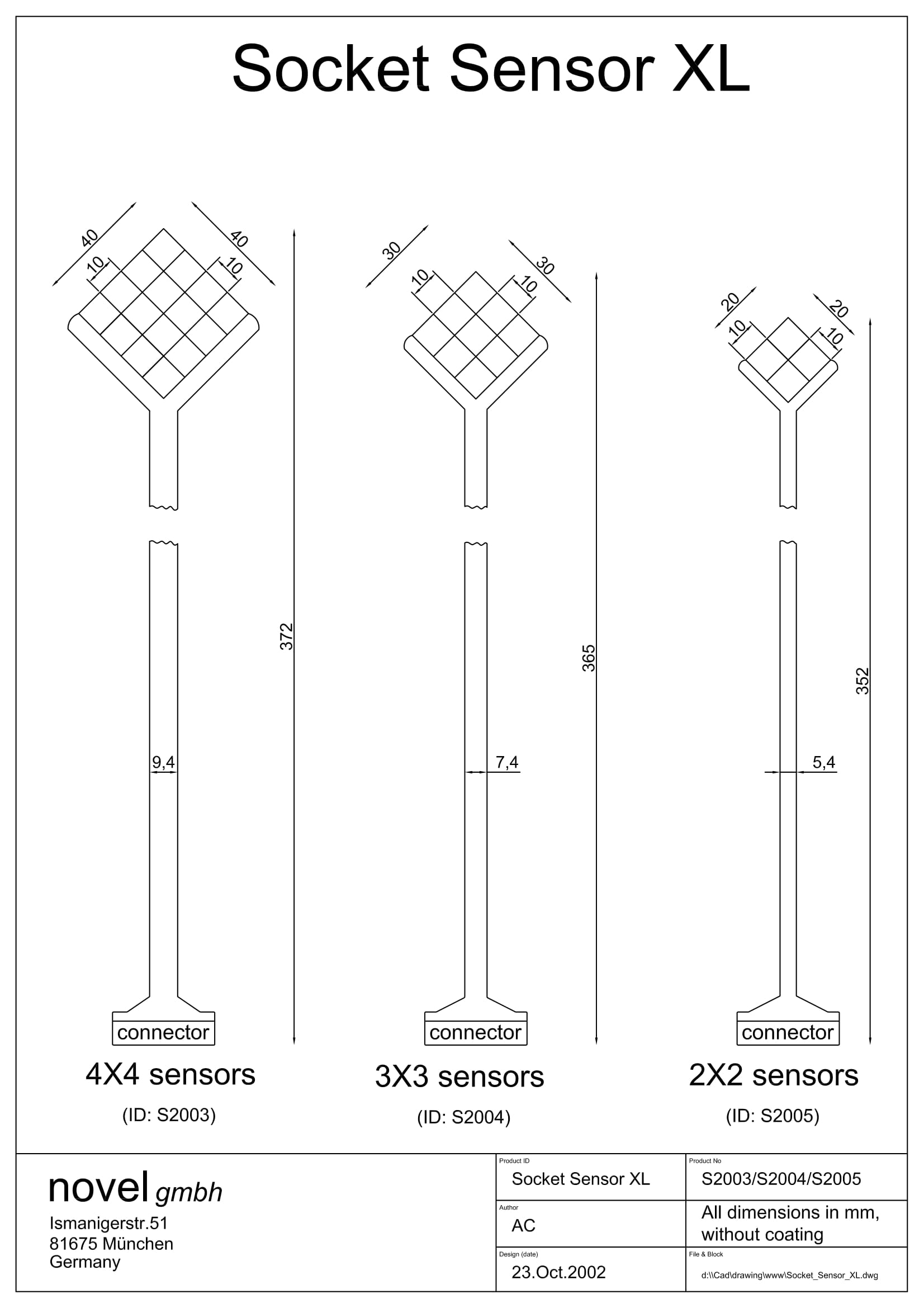

S2003 Socket Sensor XL40 x 404 x 410 x 10120 - 600< 1.2
S2003 LP Socket Sensor XL (LP)40 x 404 x 410 x 1011 - 60< 1.2
S2004 Socket Sensor M30 x 303 x 310 x 10120 -600< 1.2
S2004 LP Socket Sensor M (LP)30 x 303 x 310 x 1011 - 60 / 3 - 200< 1.2
S2005 Socket Sensor S20 x 202 x 210 x 10120-600< 1.2
S2005 LP Socket Sensor S (LP)20 x 202 x 210 x 1011 - 60 / 3 - 200< 1.2

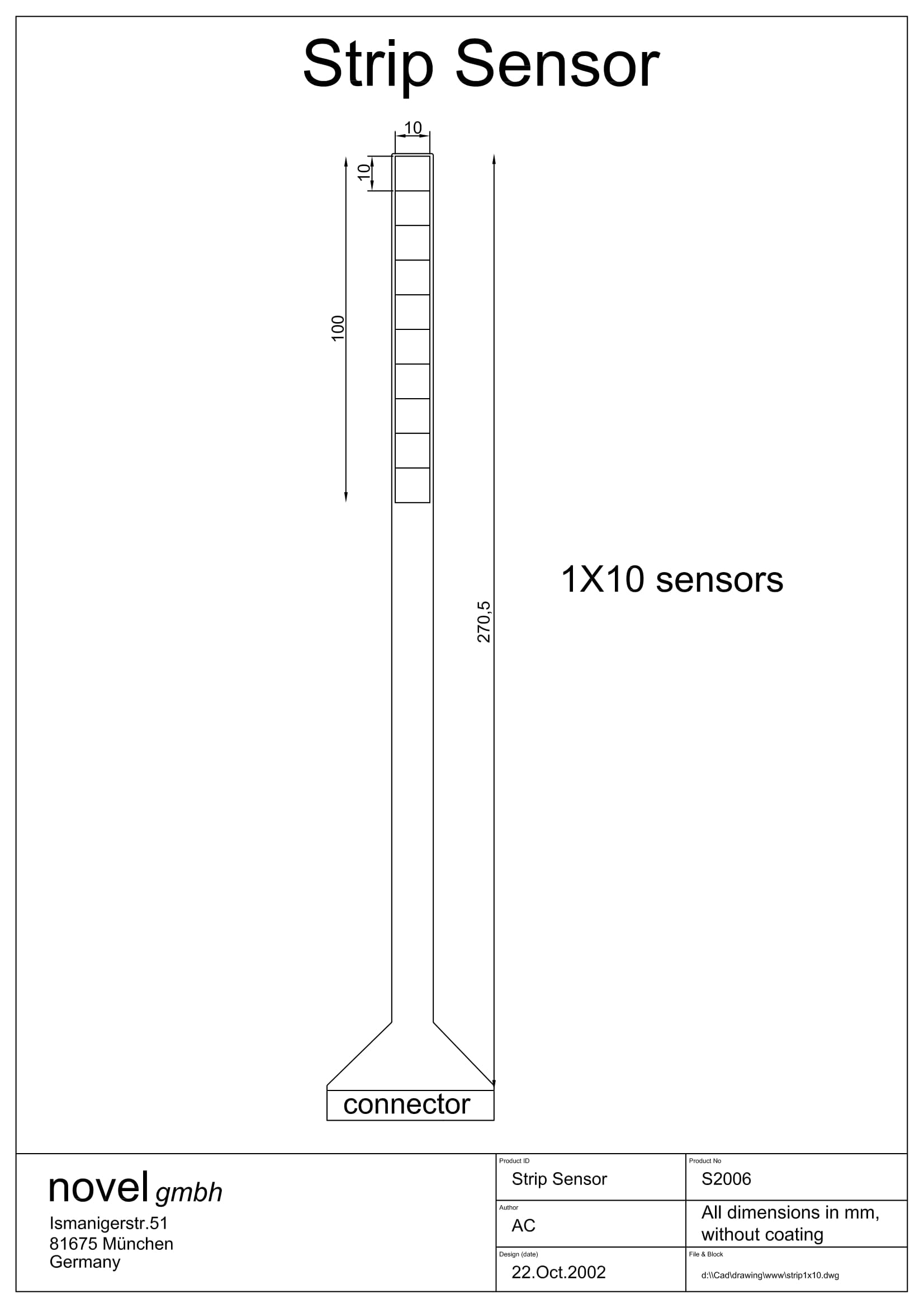

S2006 Strip Sensor100 x 101010 x 1012 - 200< 1.2
S2006 LP wpStrip Sensor 1x10 (LP) 100 x 101010 x 1011.5 - 60 (ULC)< 1.2

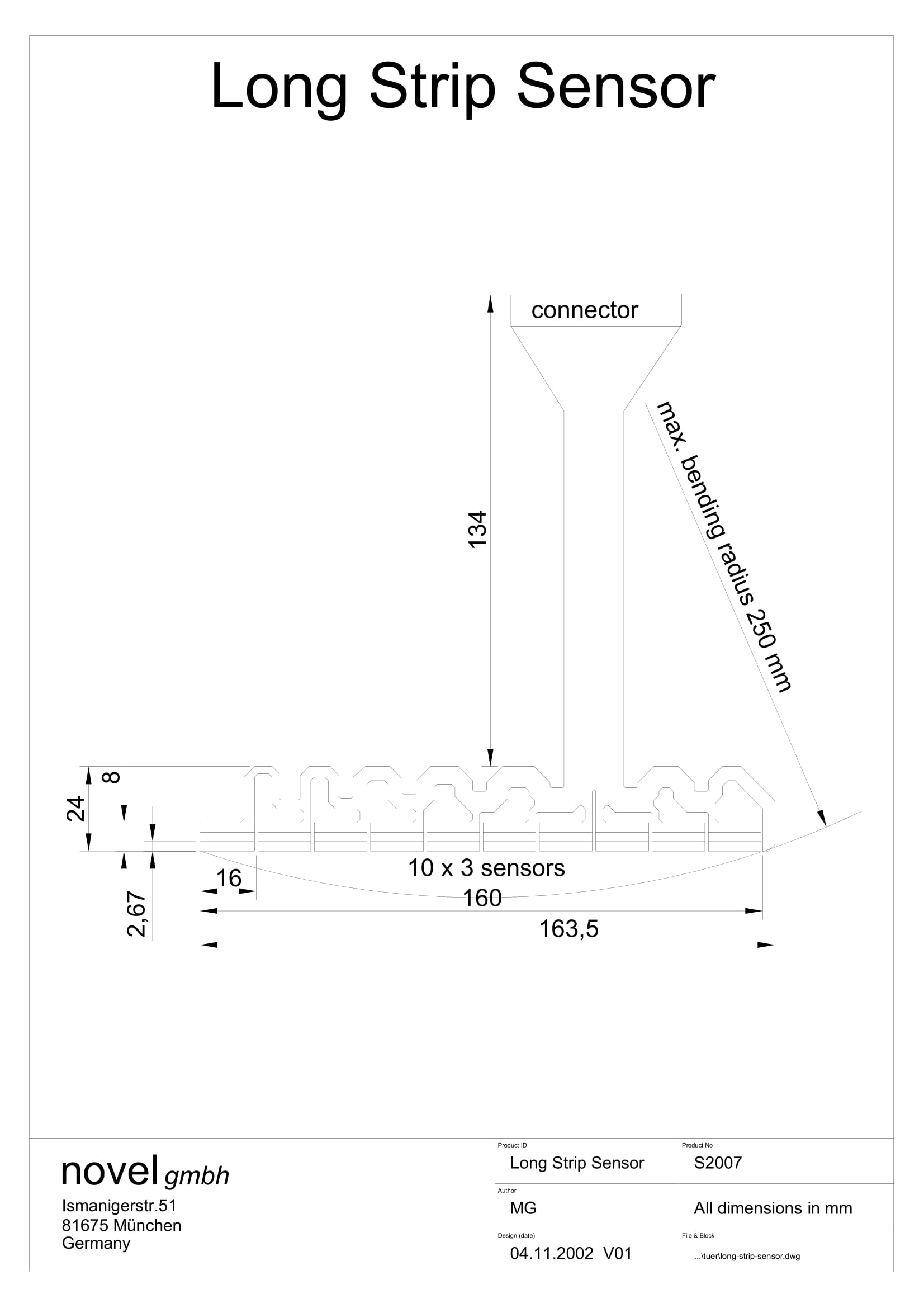

S2007 Long Strip Sensor160 x 83016 x 2.72.620 - 600< 1.2

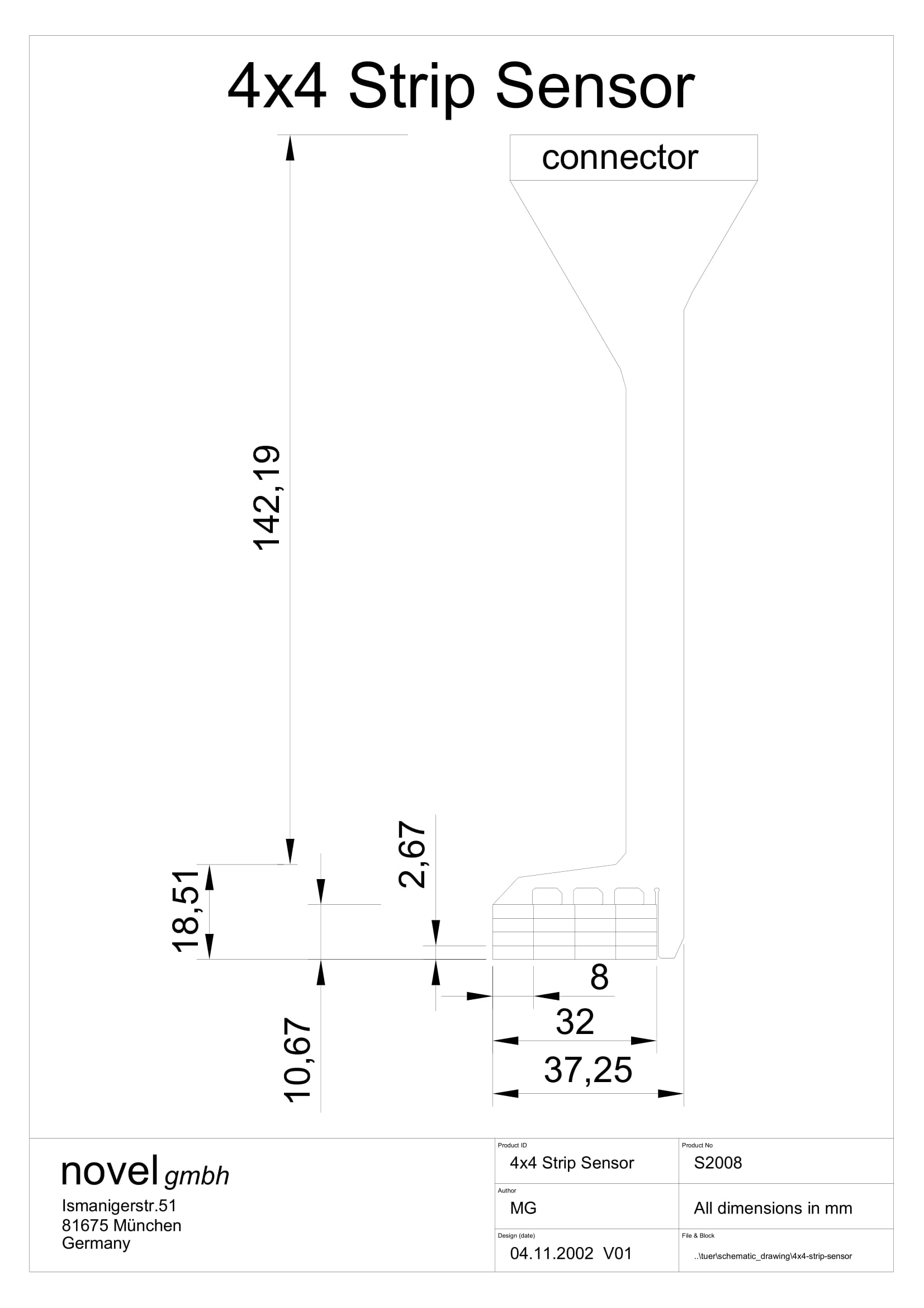

S2008 Strip Sensor 4x4 32 x 10.674 x 48 x 2.72.520 - 600< 1.2

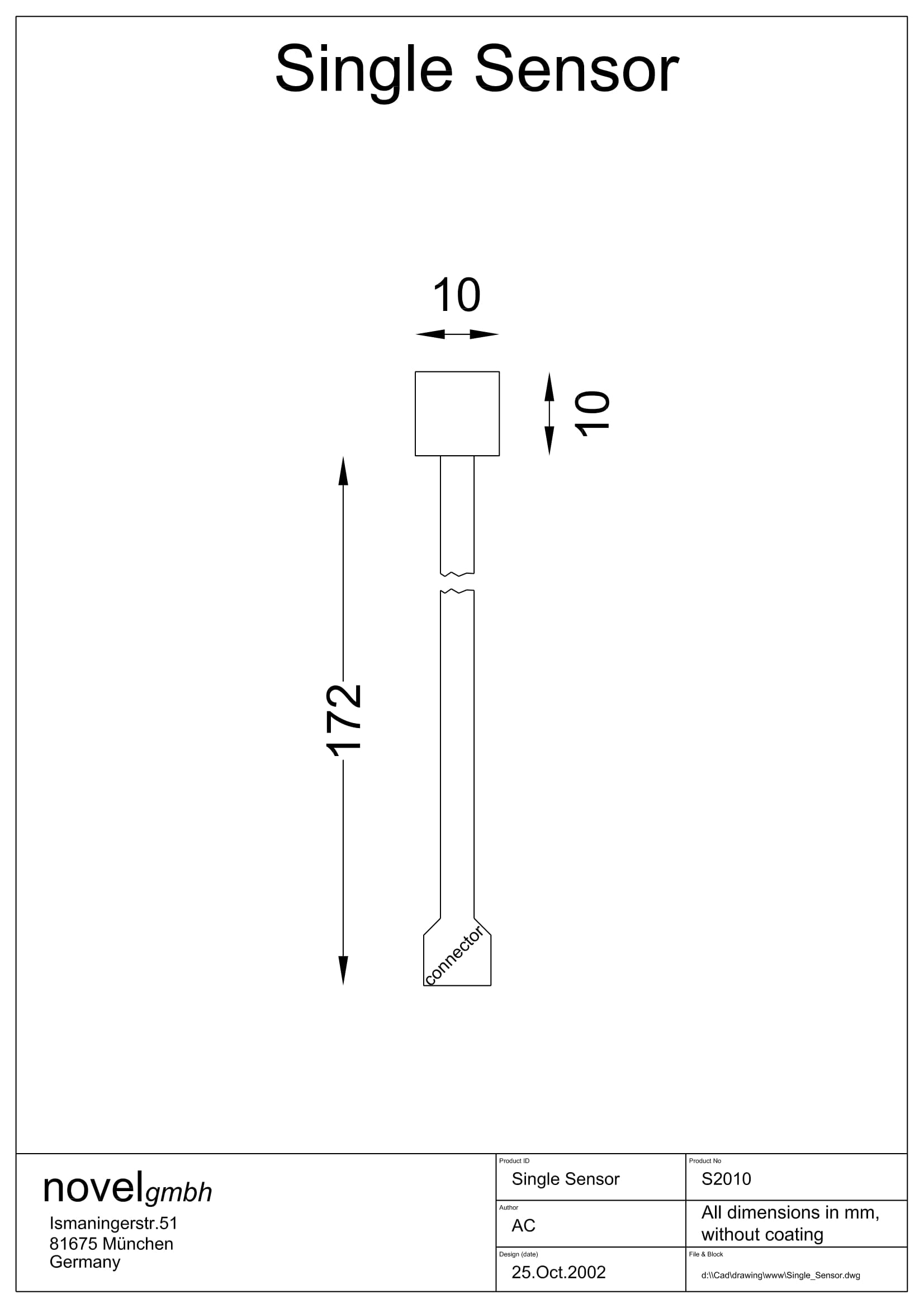

S2010 Single Sensor 10x10100110 x 1012 - 200< 1.2
S2010 LPSingle Sensor 10x10 (LP)100110 x 1010.5 - 60 (ULC)< 1.2
S2011 Single Sensor Ø10781Ø10 1.28205128205132 - 200< 1.2
S2011 LP wpSingle Sensor Ø10 (LP) 781Ø10 1.28205128205130.5 - 60 (ULC)< 1.2
S2011 HPSingle Sensor Ø10 (HP) 781Ø10 1.282051282051340 - 2000< 1.2

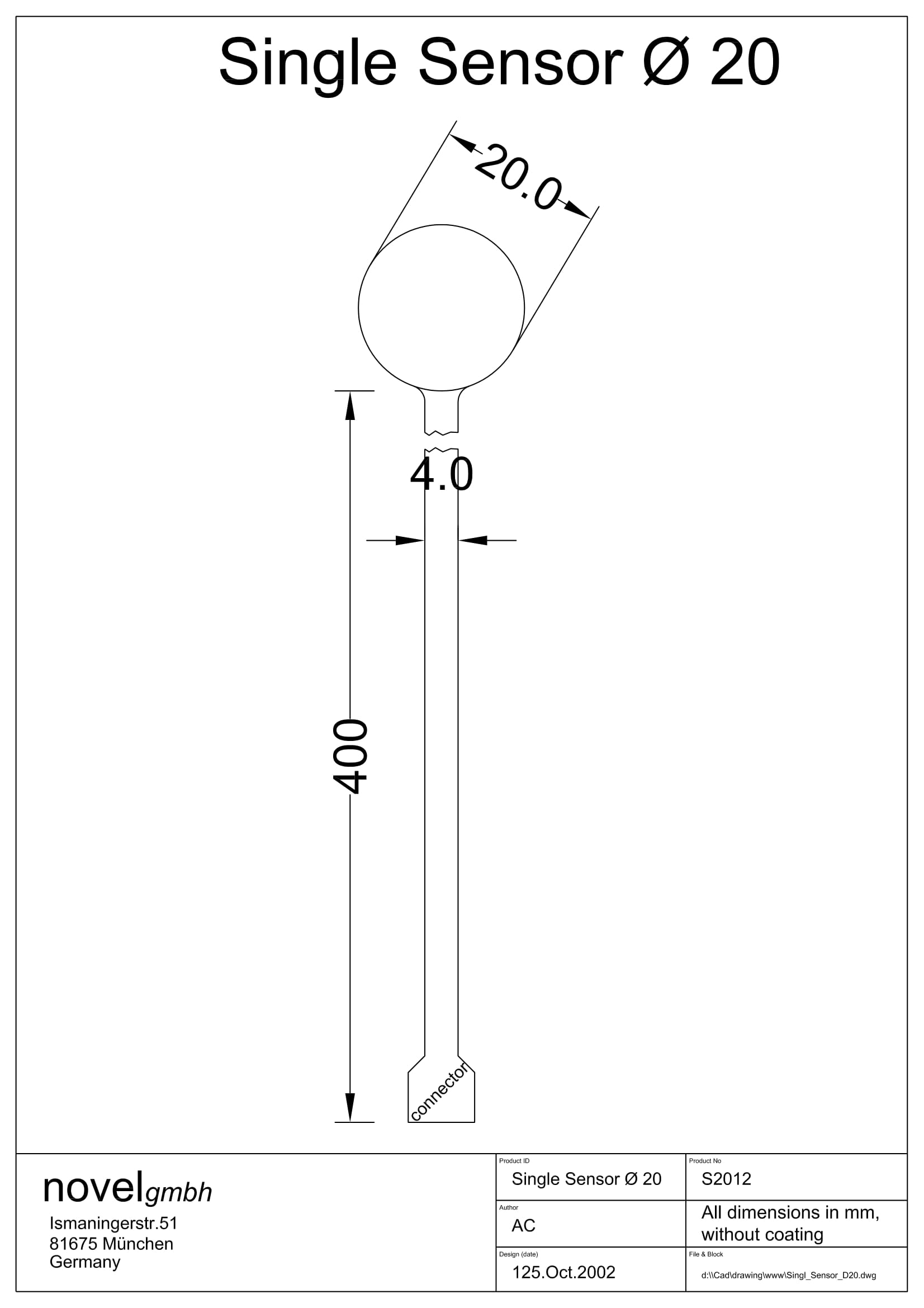

S2012 Single Sensor Ø203141Ø200.318471337579622 - 200< 1.2
S2012 LP Single Sensor Ø20 (LP)3141Ø200.318471337579620.5 - 60 (ULC)< 1.2

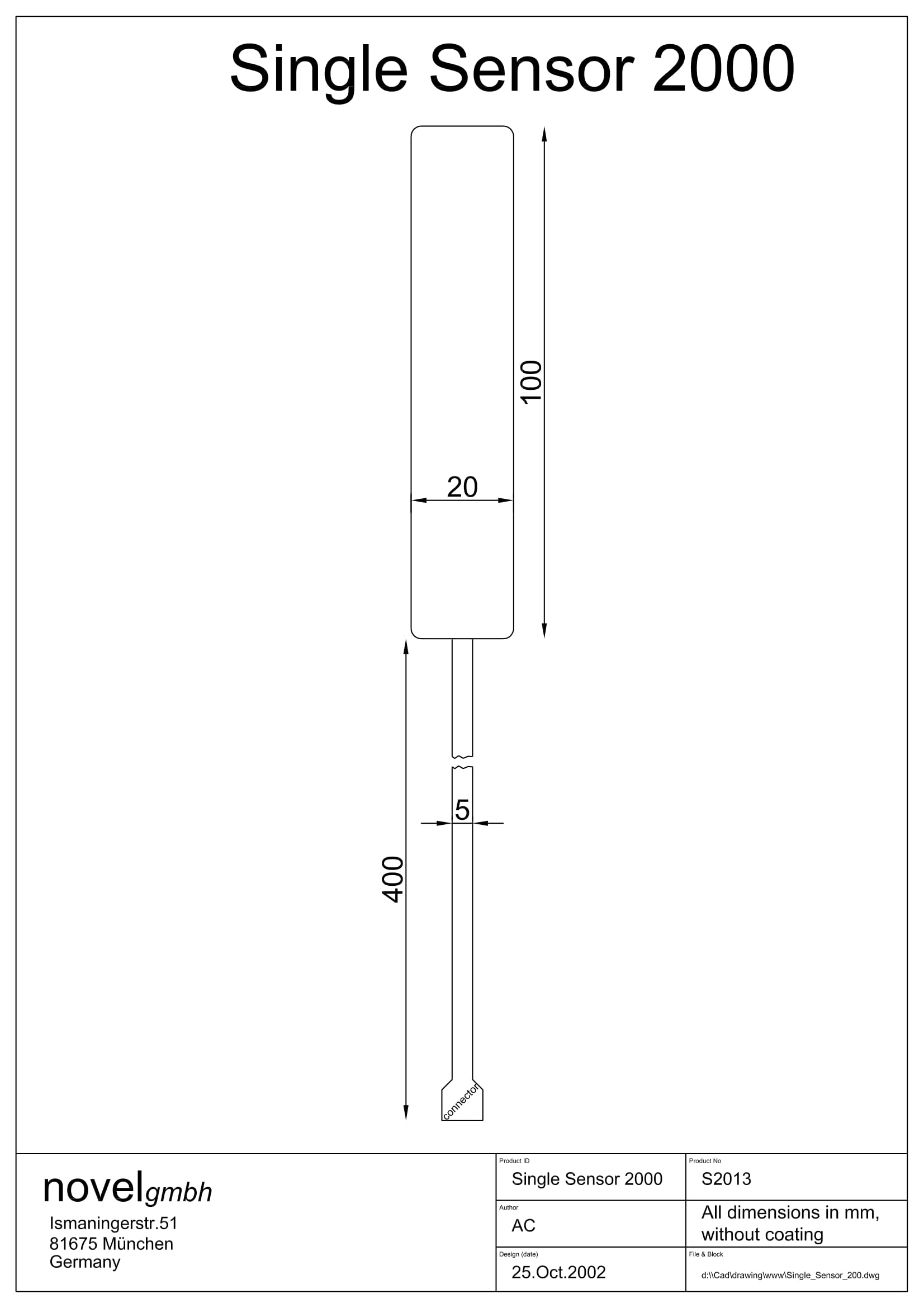

S2013 Single Sensor 200020001100 x 200.0510 - 600< 1.2

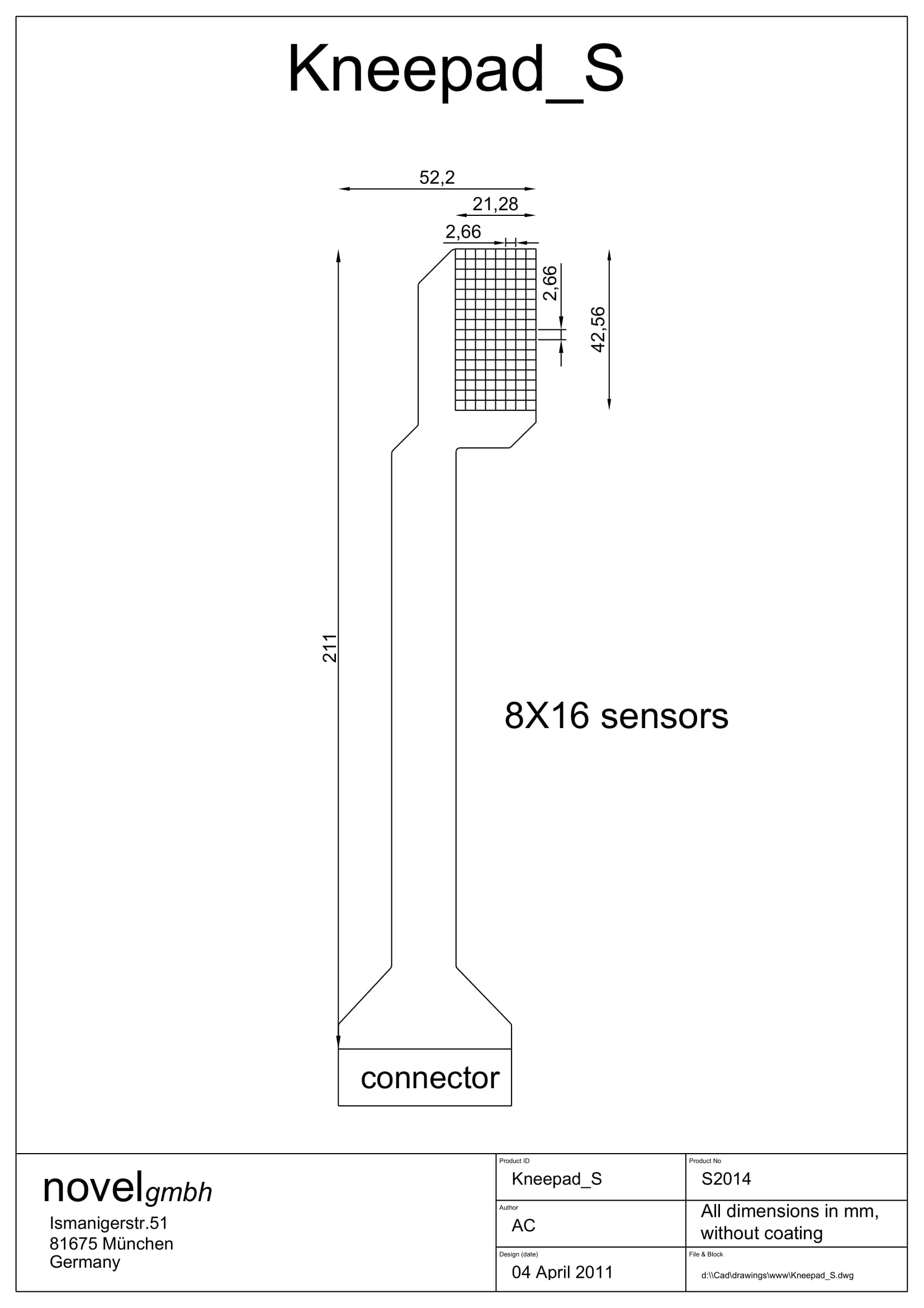

S2014 Kneepad_S43 x 21.516 x 82.7 x 2.71450 - 2000< 1.2

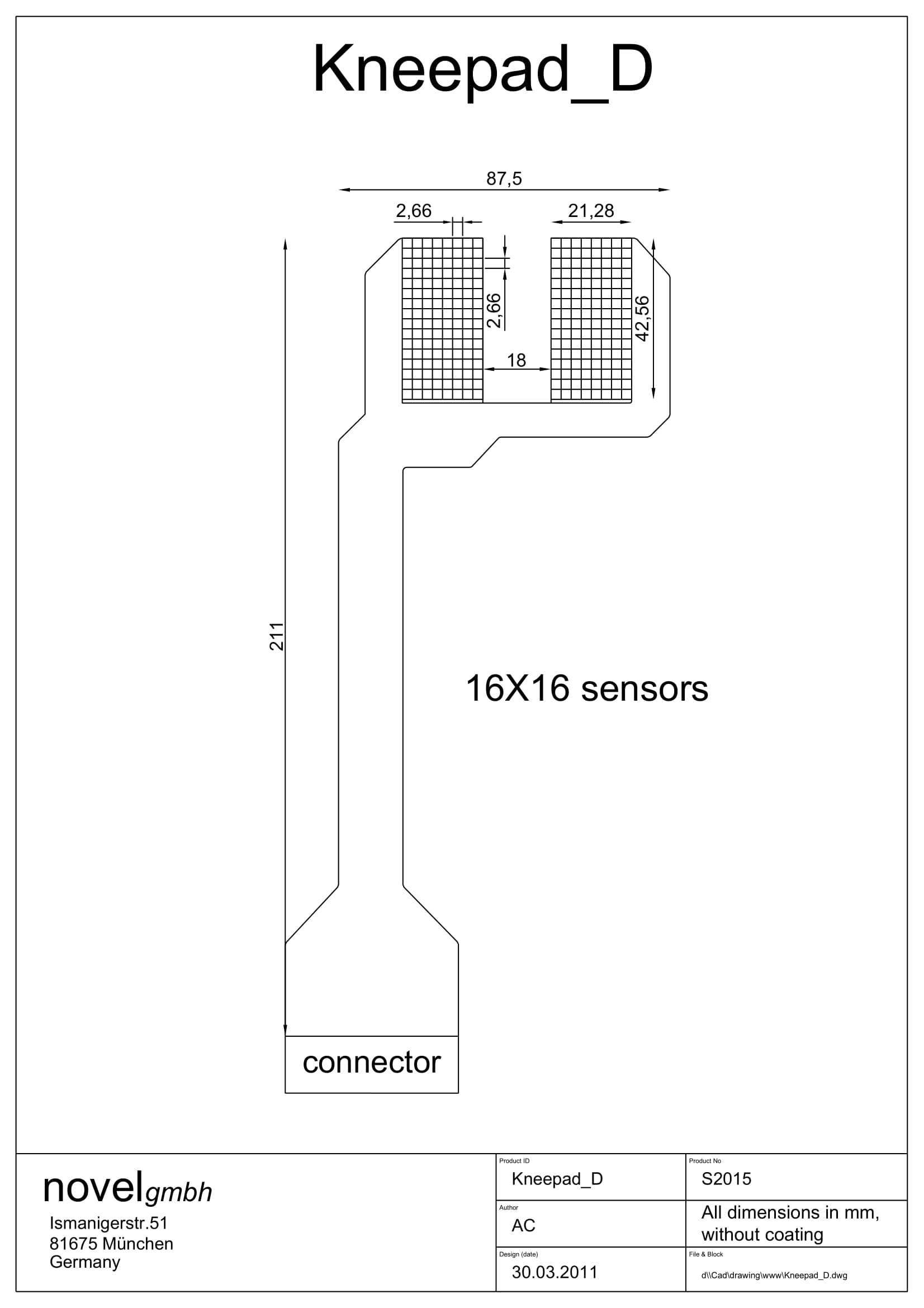

S2015 Kneepad_D 43 x 432 x (16 x 8)2.7 x 2.71450 - 2000< 1.2

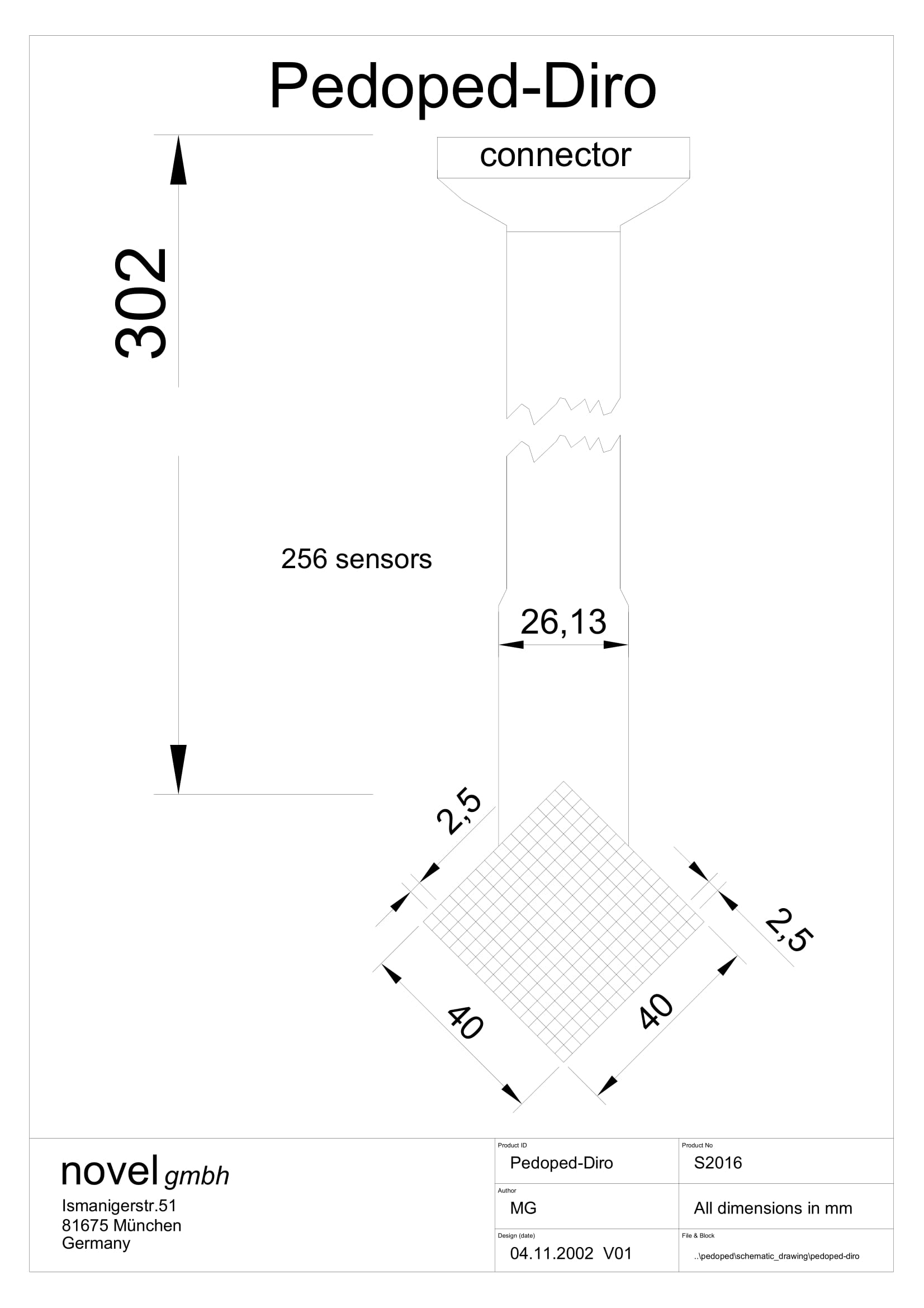

S2016 HR Pad Diro40.64 x 40.6416 x 162.54 x 2.541650 - 1400< 1.2

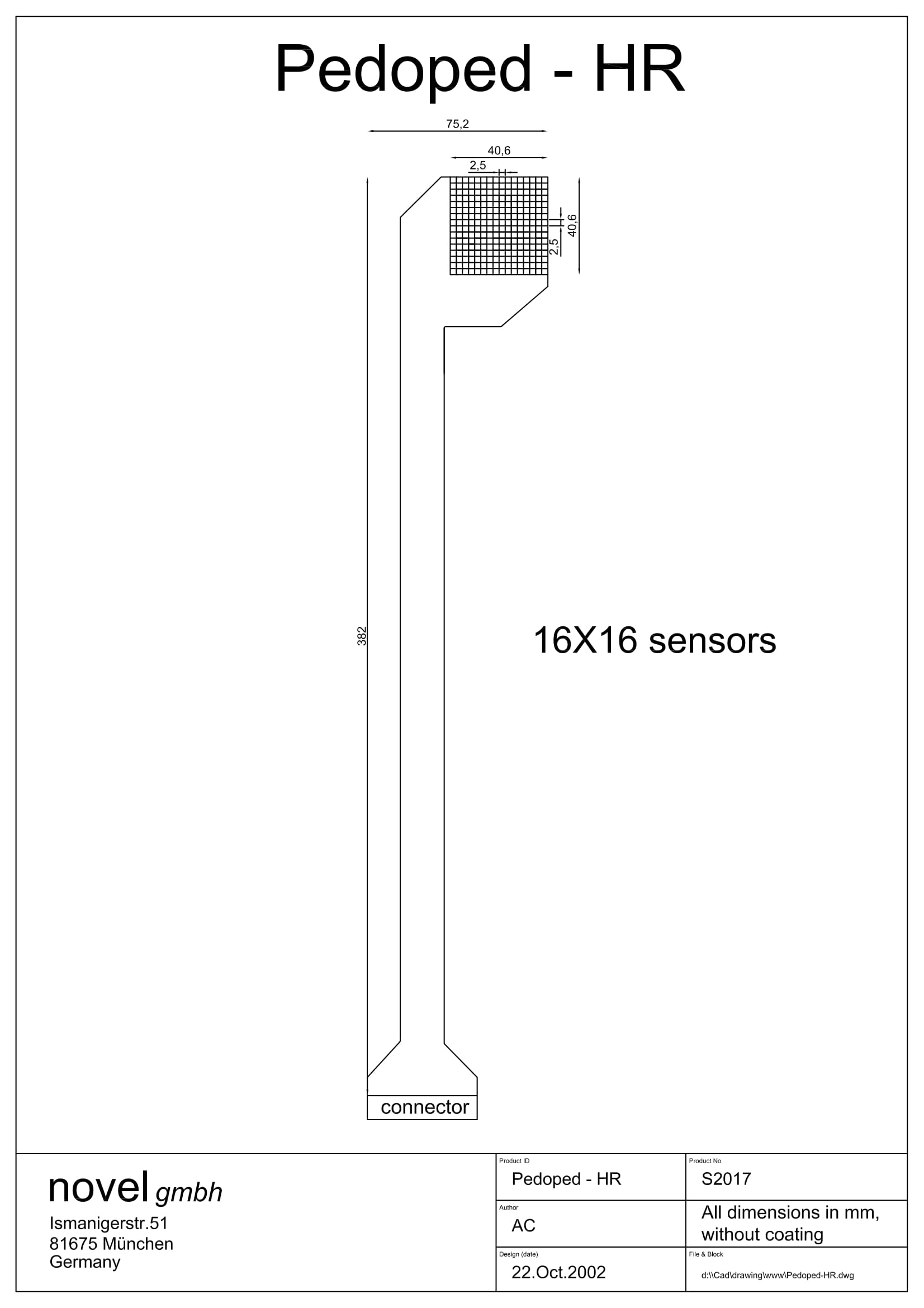

S2017 HR Pad40.64 x 40.6416 x 162.54 x 2.541650 - 1400< 1.2
S2017a HR Pad_k40.64 x 40.6416 x 162.54 x 2.541650 - 1400< 1.2

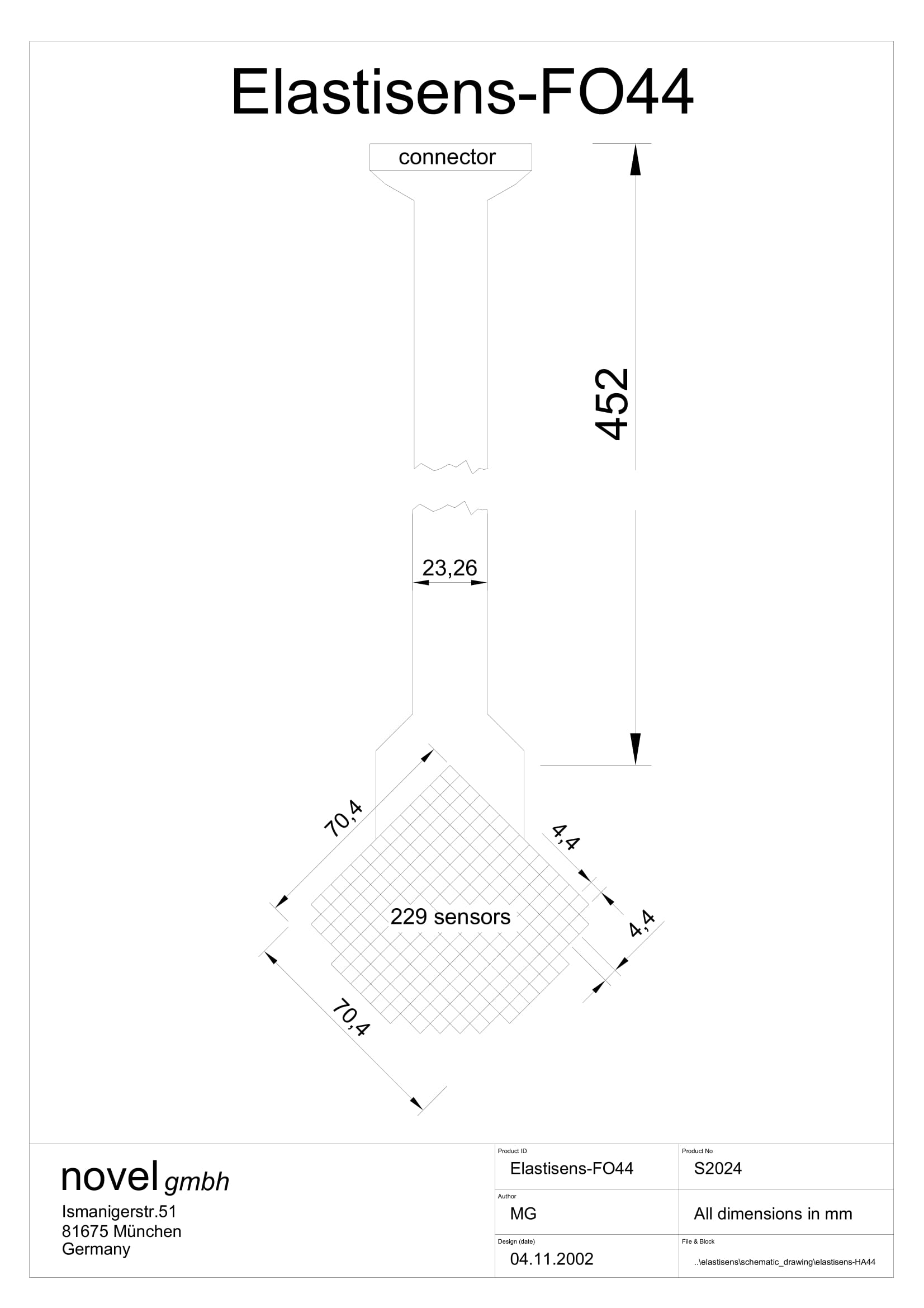

S2024 Elastisens FO44 70.4 x 70.42294.4 x 4.4520 - 600< 1.2

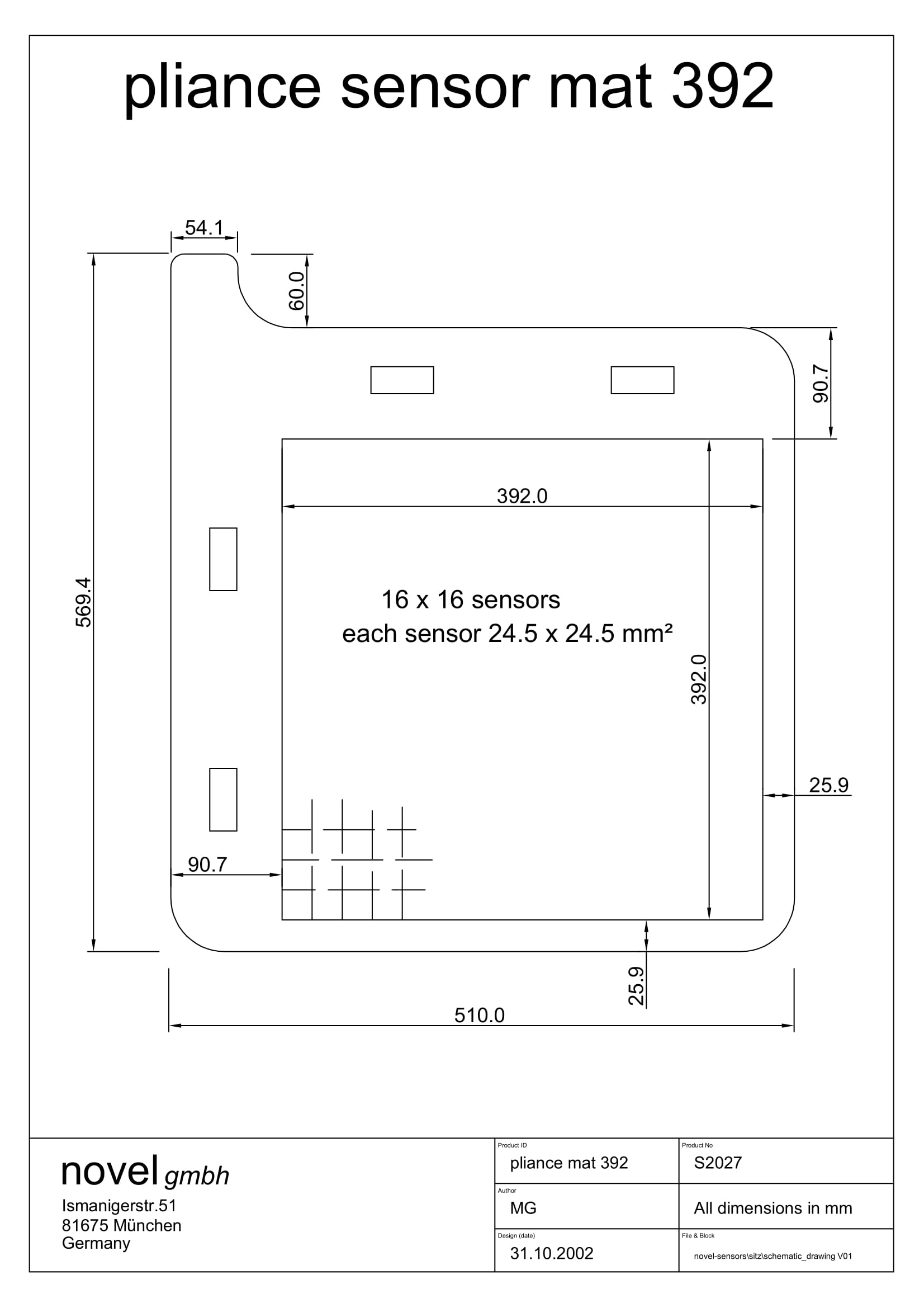

S2027 pliance sensor mat 392 K392 x 39216 x 1624.5 x 24.50.172 - 60< 1.2
S2028 pliance sensor mat 448 K448 x 44832 x 3214 x 140.512 - 60< 1.2

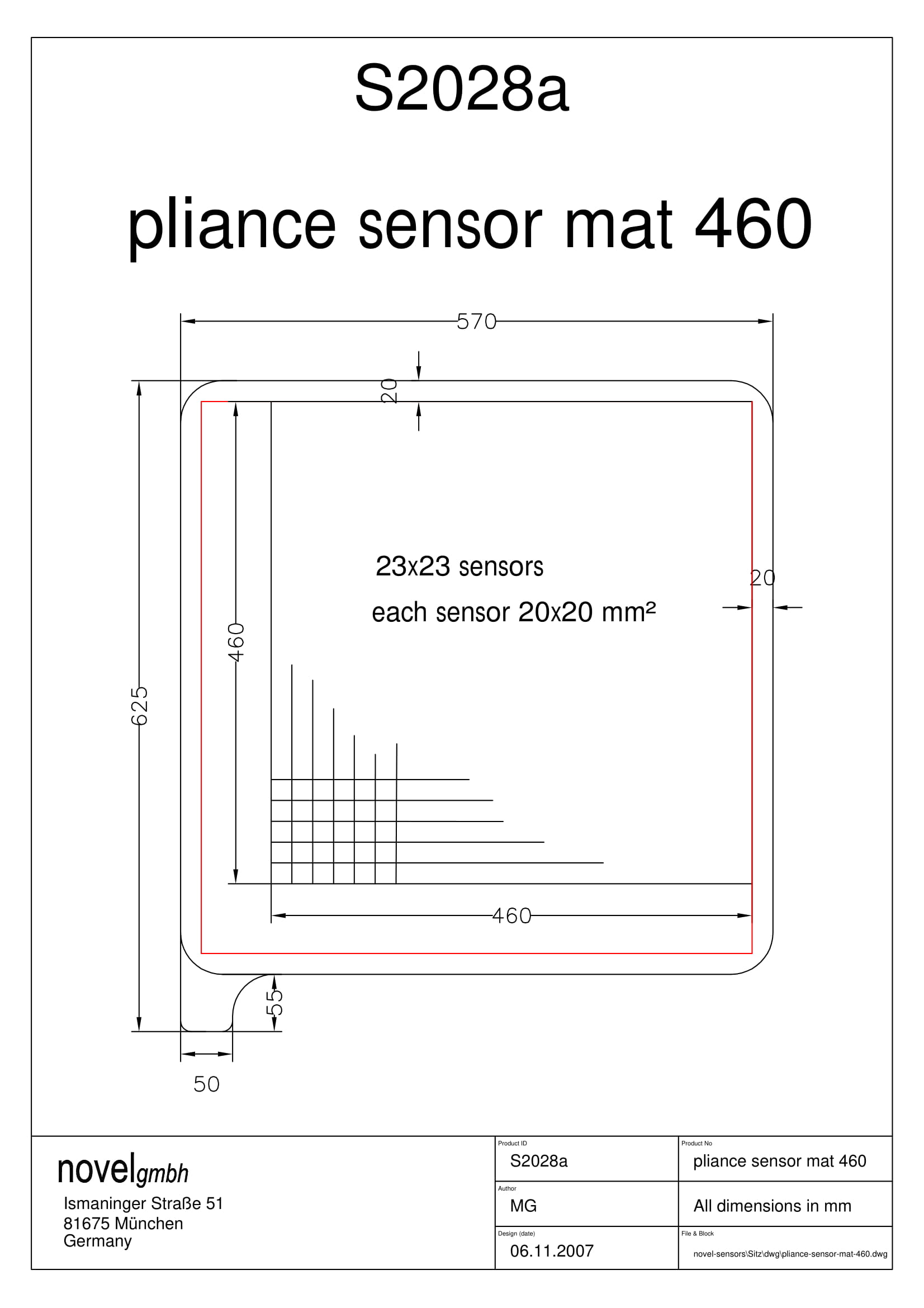

S2028a pliance sensor mat 460 K460 x 46023 x 2320 x 200.252 - 60< 1.2

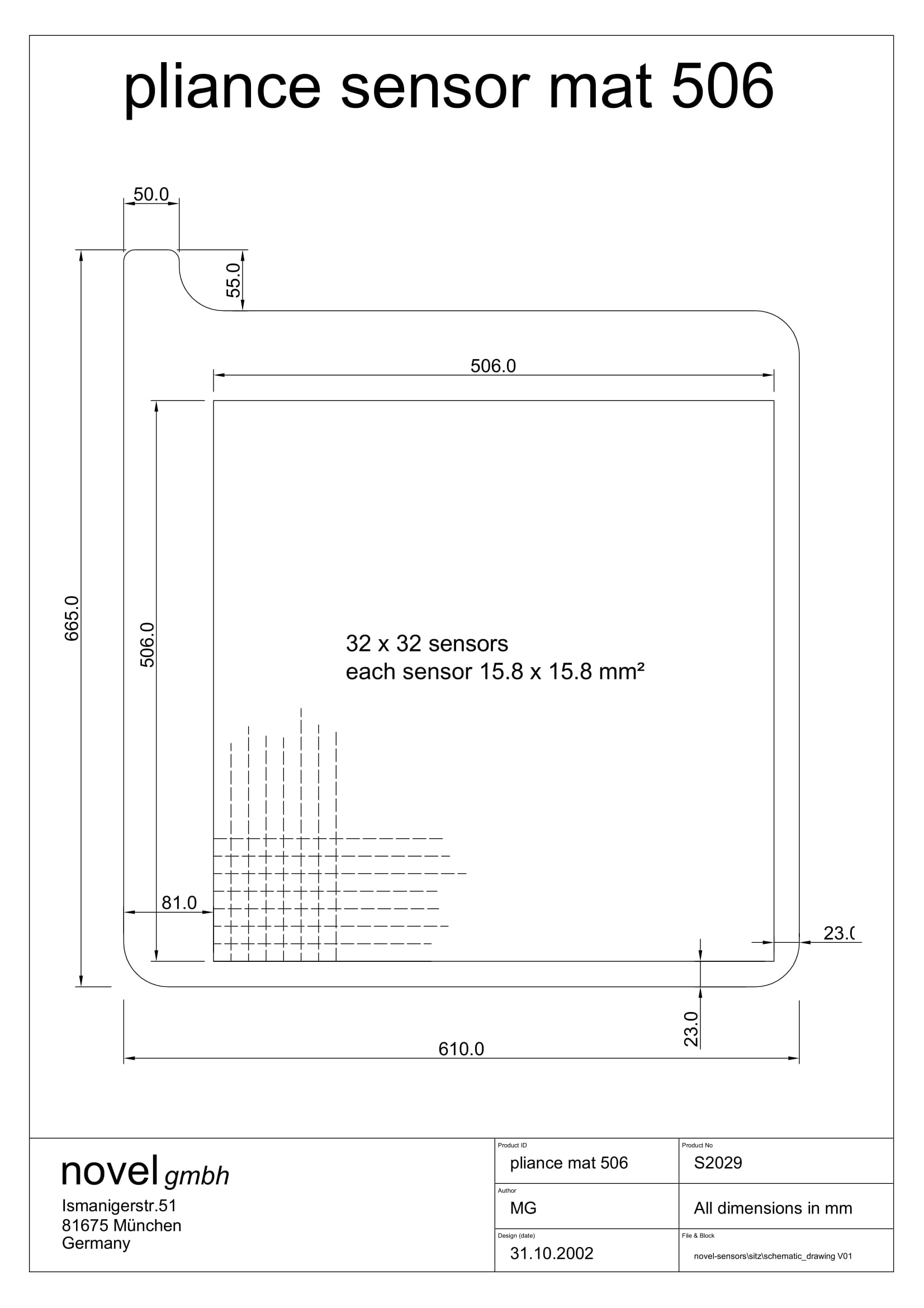

S2029 pliance sensor mat 506 K506 x 50632 x 3215.8 x 15.80.42 - 60< 1.2

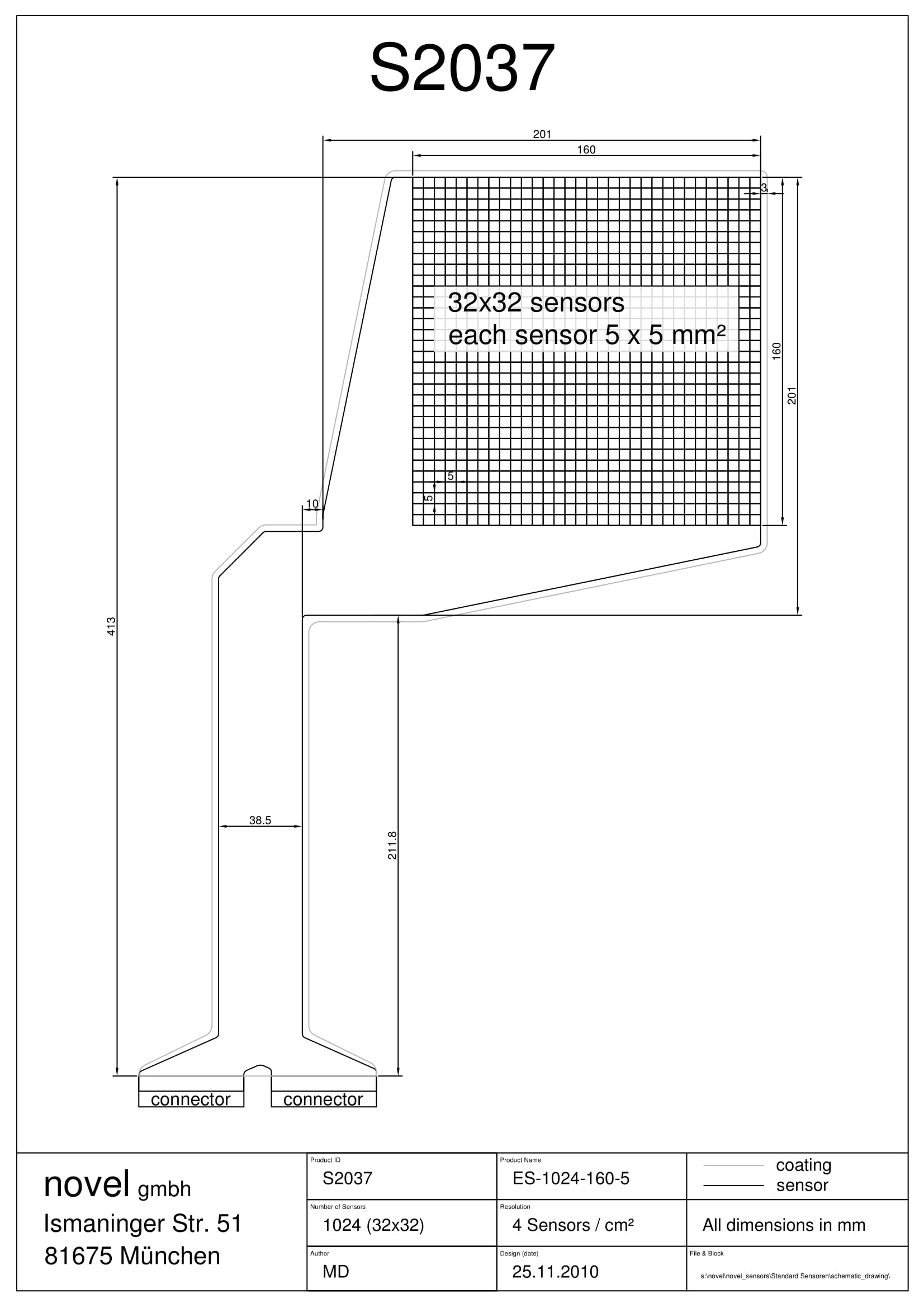

S2037 Elastisens ES-1024-160-5160 x 16032 x 325 x 545 - 600< 1.2
S2039patella Sensor1988855 x 5450 - 2000< 1.2

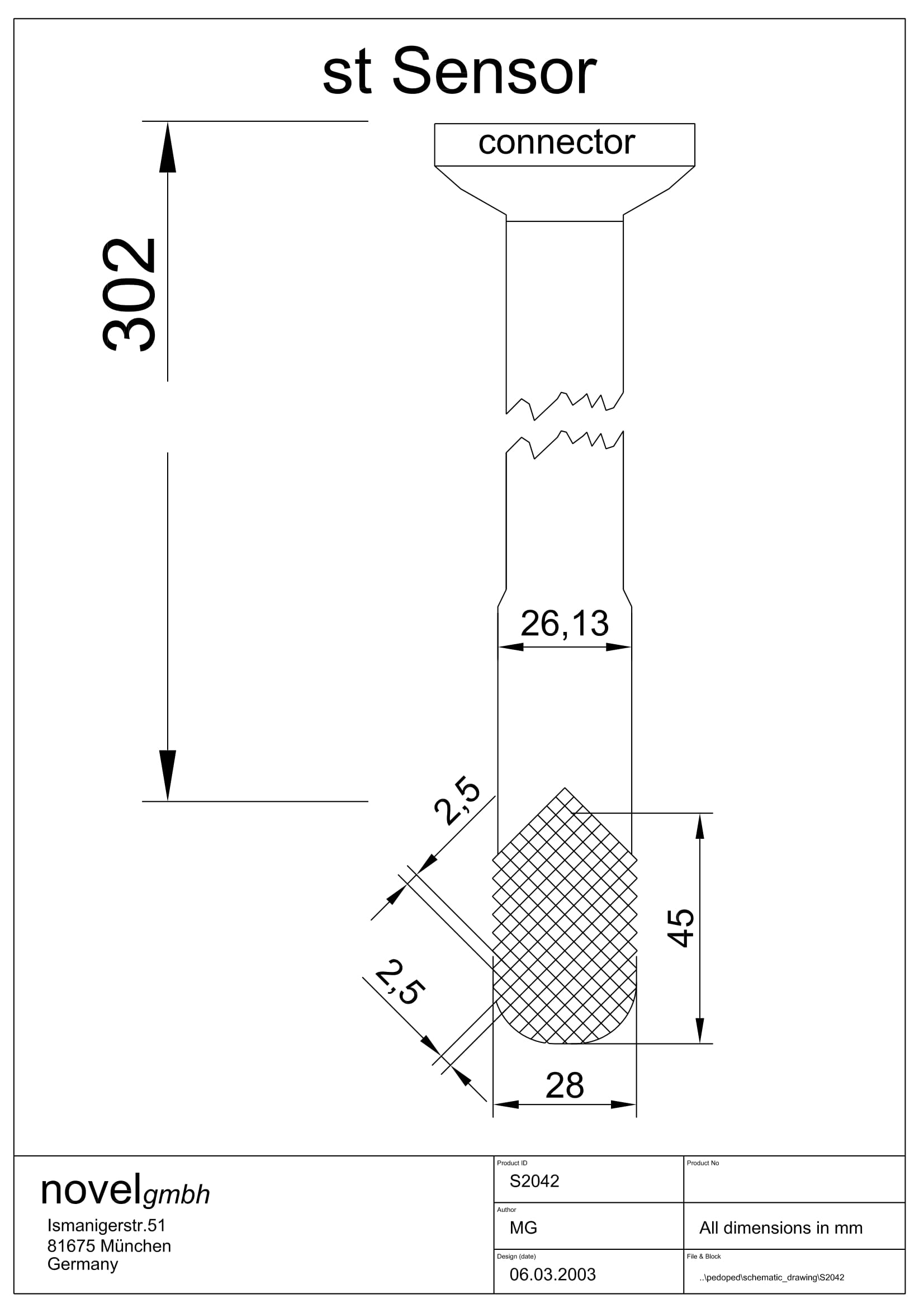

S2042 st Sensor (subtalar joint)45 x 281942.5 x 2.51650 - 2000< 1.2

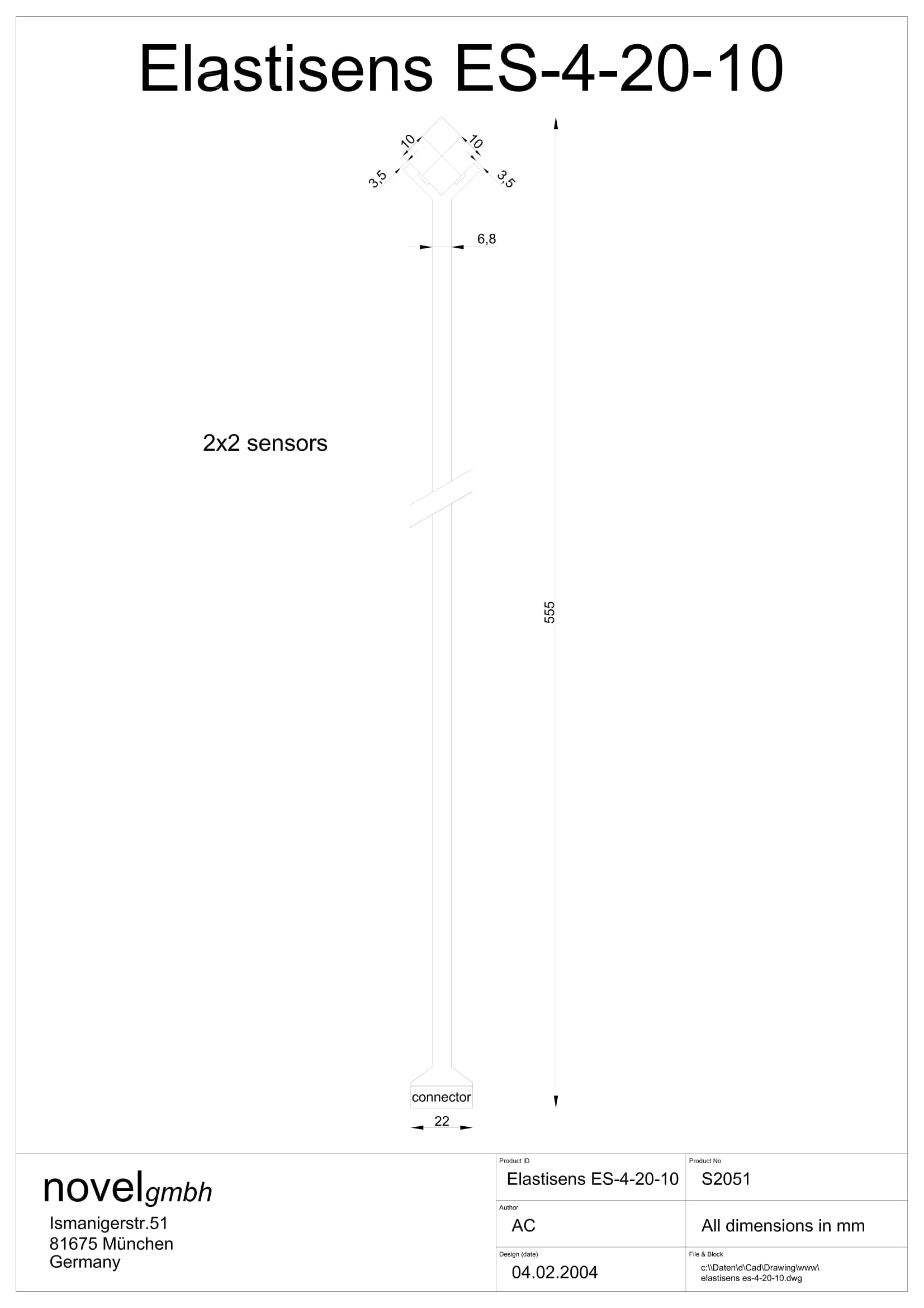

S2051Elastisens ES-4-20-1020 x 202 x 210 x 10110 - 600< 1.0

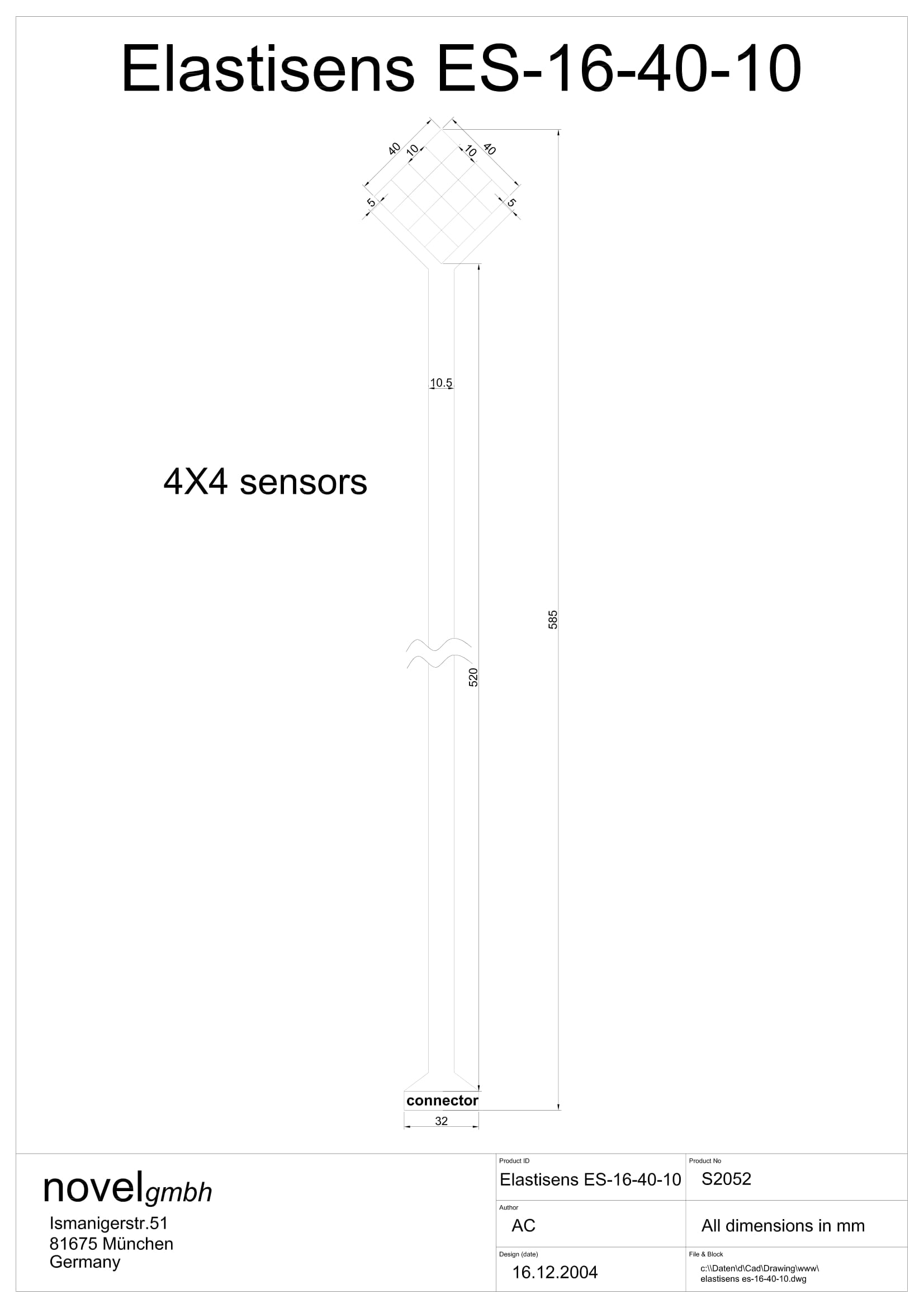

S2052 Elastisens ES-16-40-1040 x 404 x 410 x 10110 - 600< 1.0

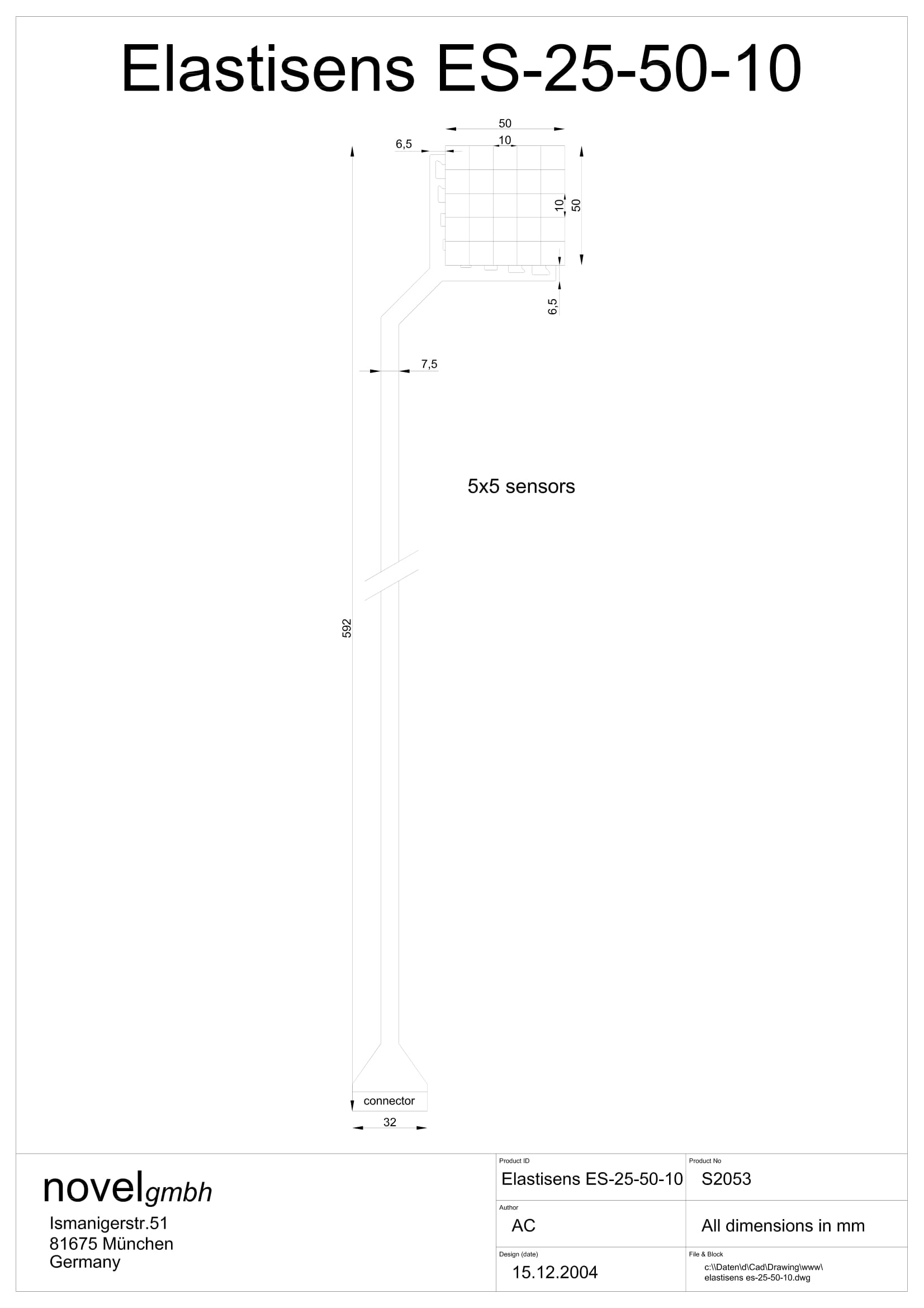

S2053 Elastisens ES-25-50-1050 x 505 x 510 x 10110 - 600< 1.0

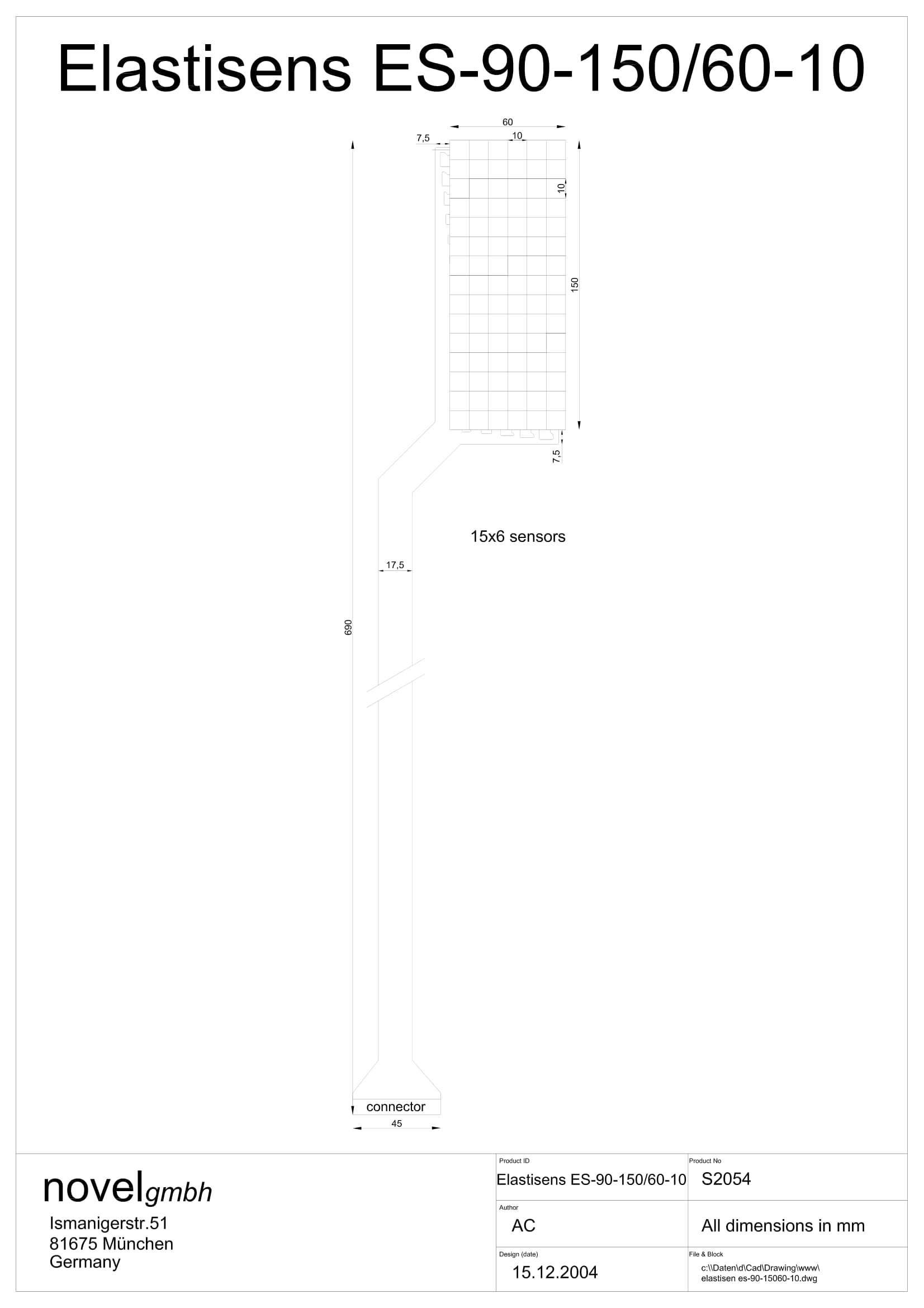

S2054 Elastisens ES-90-150/60-10150 x 6015 x 610 x 10110 - 600< 1.0

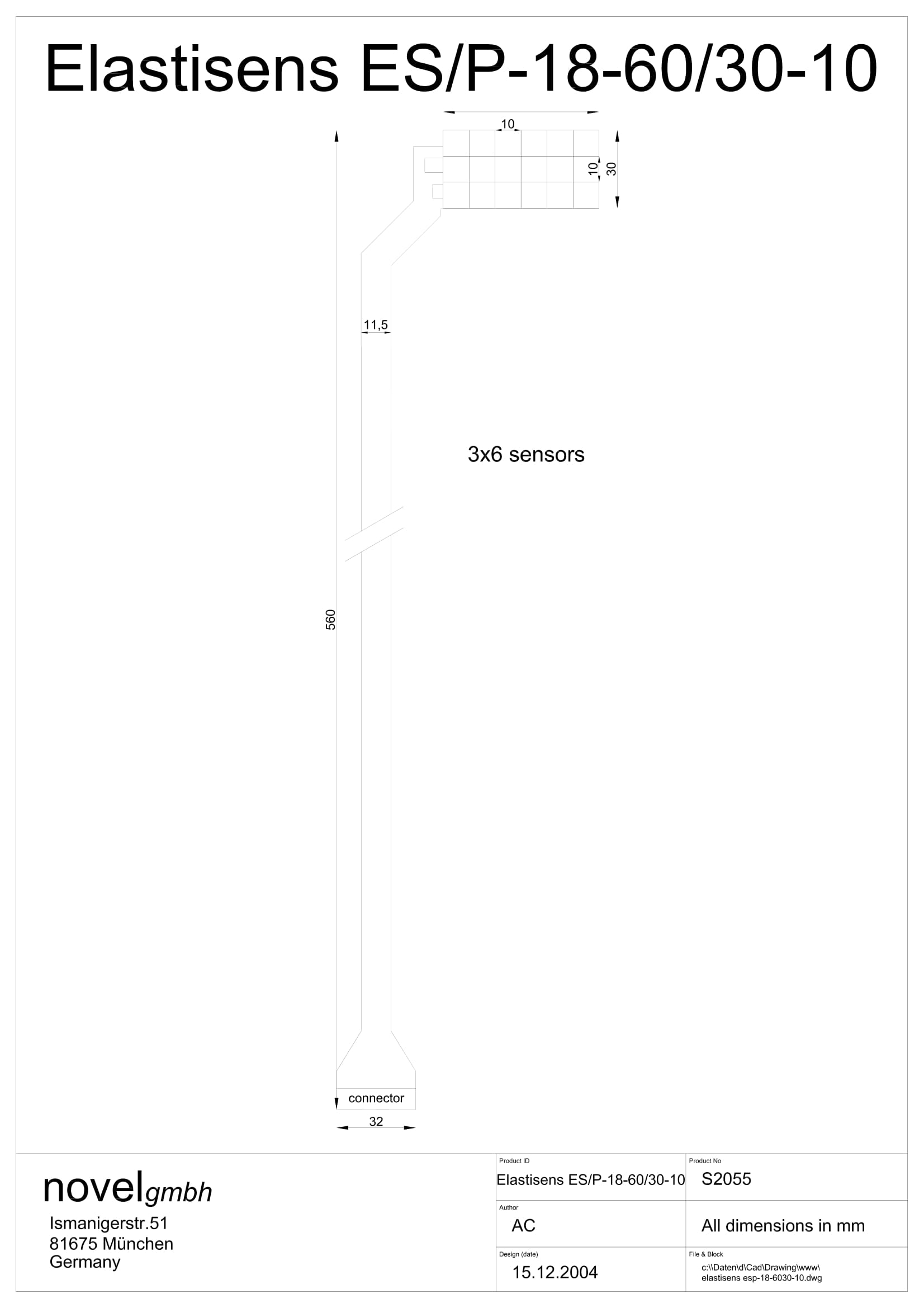

S2055 Elastisens ES/P-18-60/30-1060 x 306 x 310 x 10110 - 600< 1.0

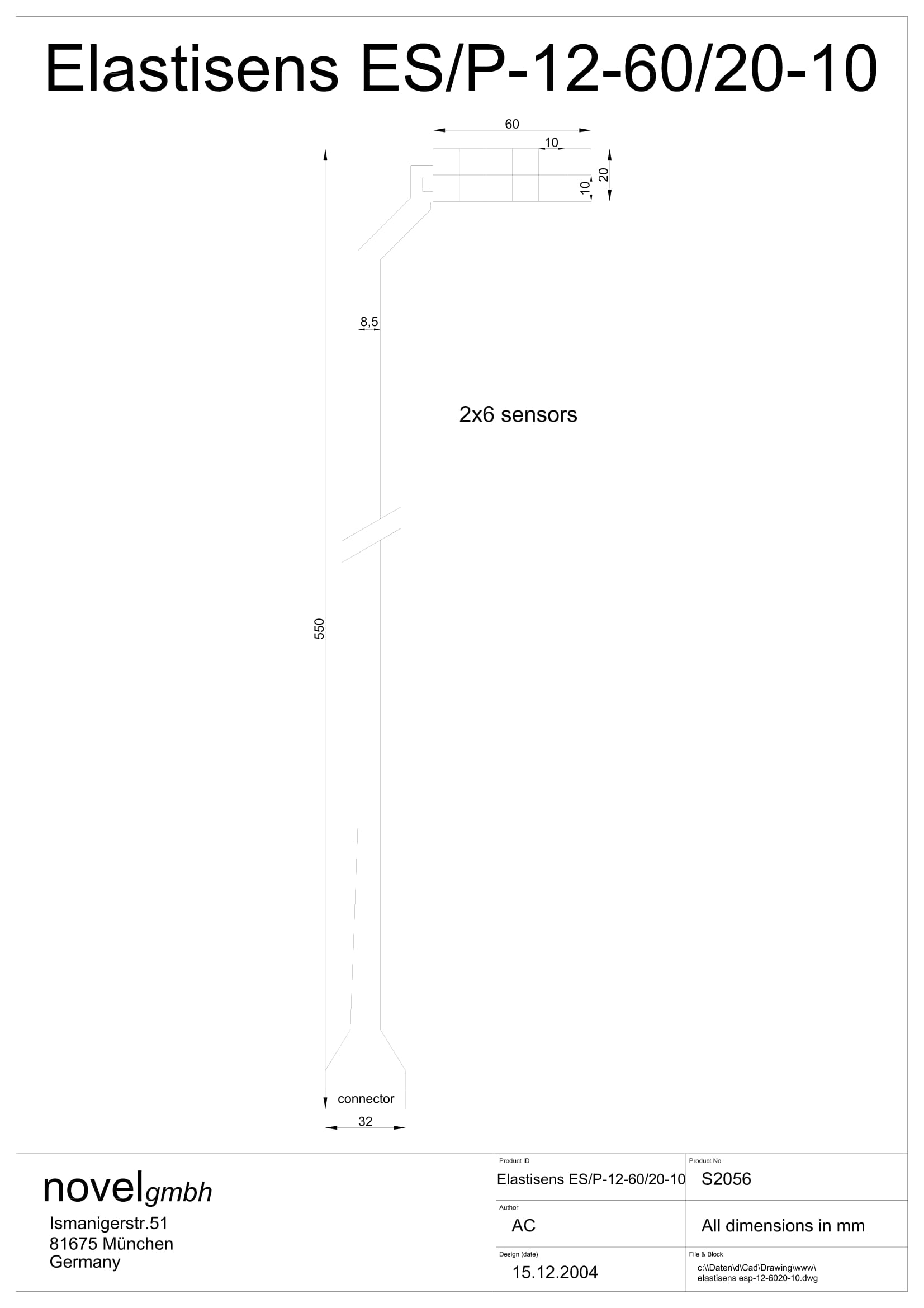

S2056 Elastisens ES/P-12-60/20-1060 x 206 x 210 x 10110 - 600< 1.0

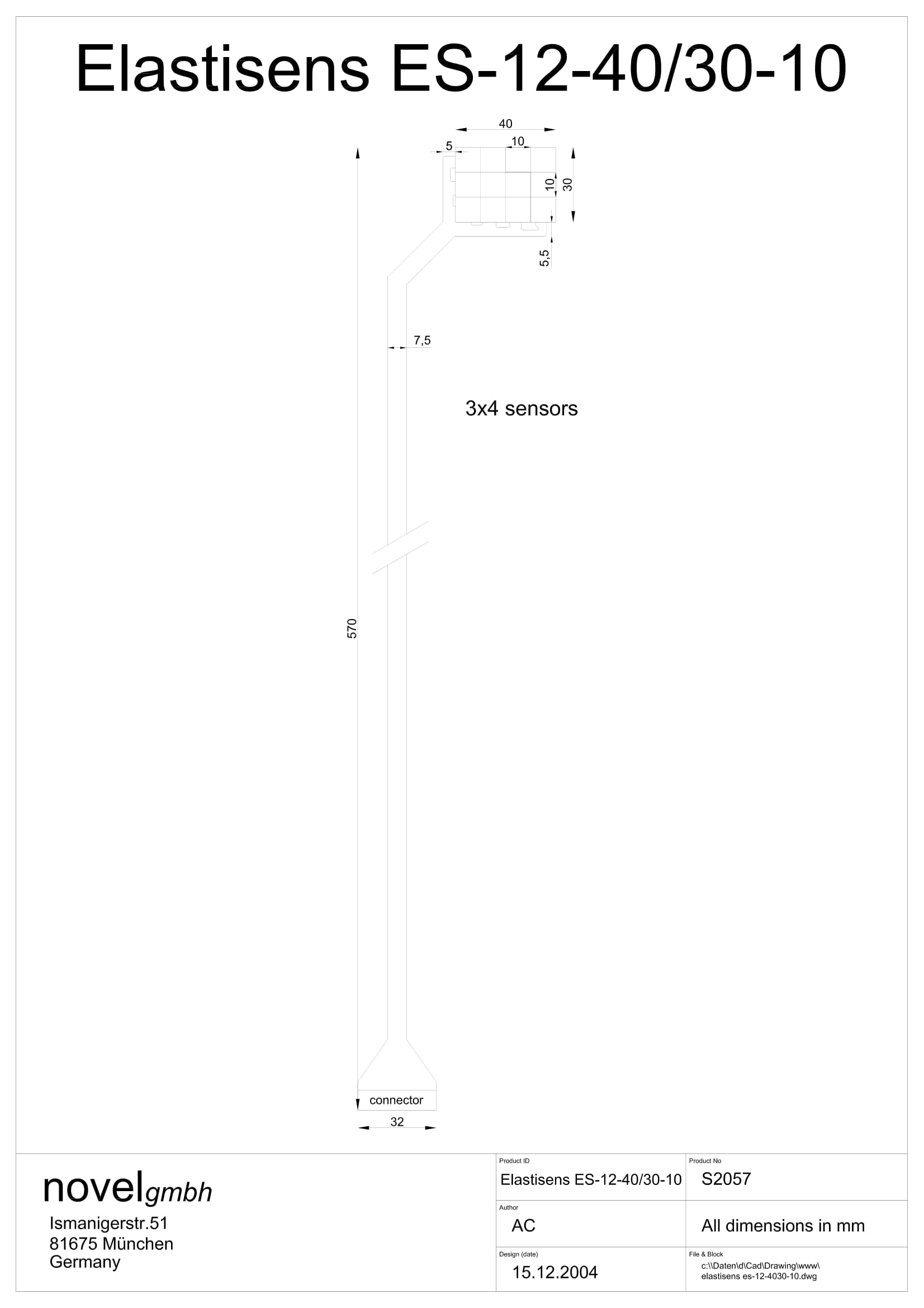

S2057 Elastisens ES-12-40/30-1040 x 304 x 310 x 10110 - 600< 1.0

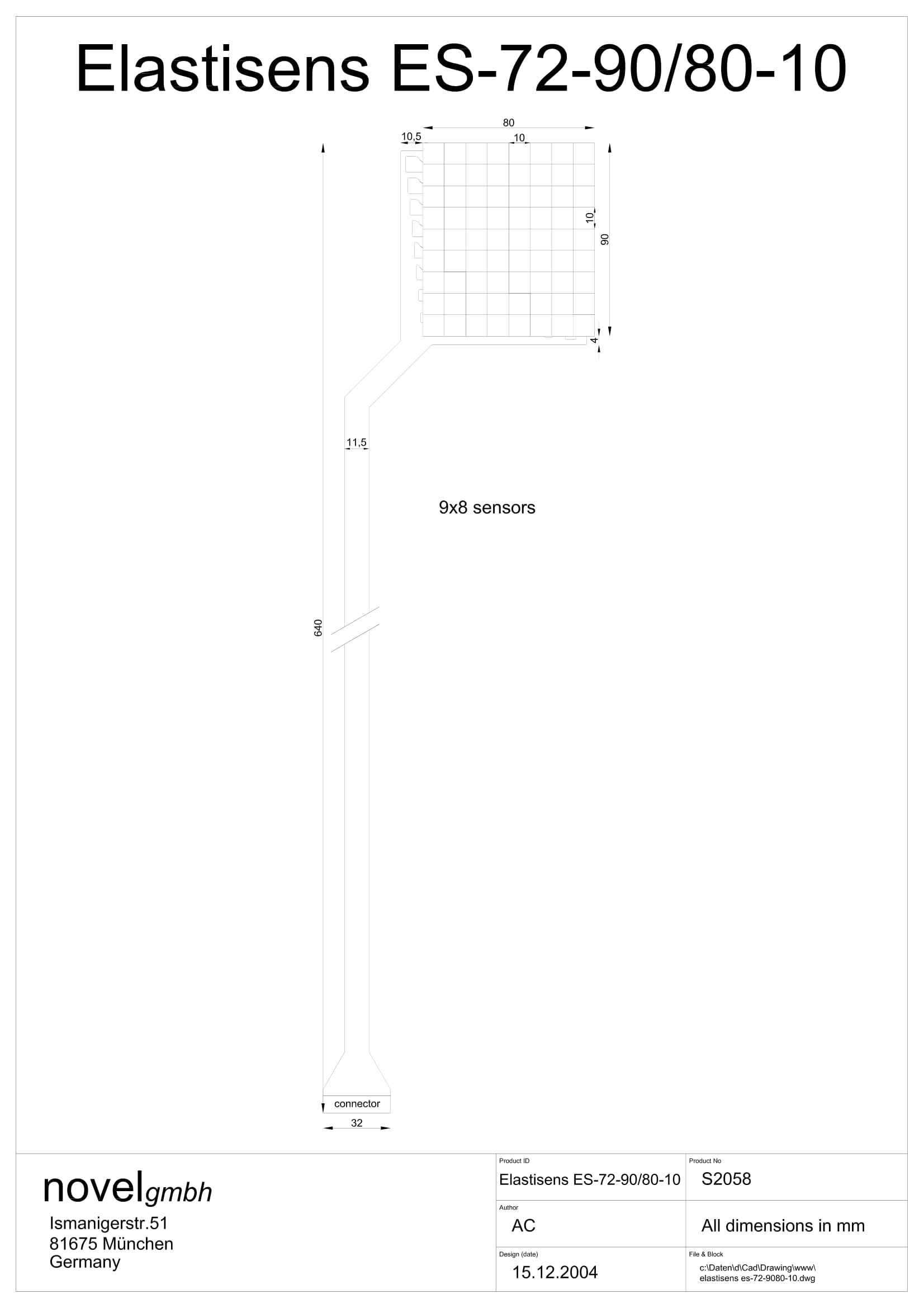

S2058 Elastisens ES-72-90/80-1090 x 809 x 810 x 10110 - 600< 1.0

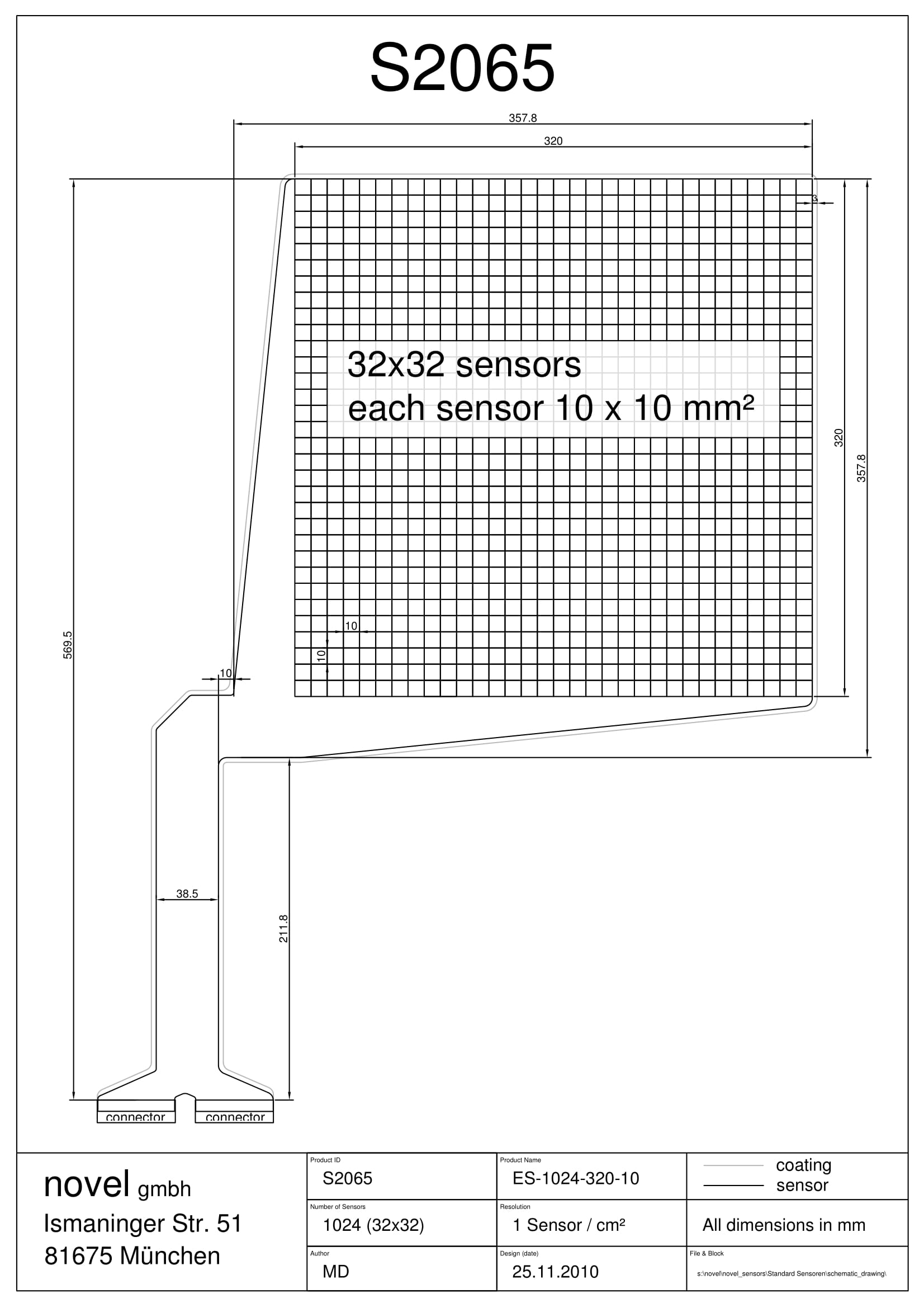

S2065 Elastisens ES-1024-320-10320 x 32032 x 3210 x 1012 - 60< 1.2

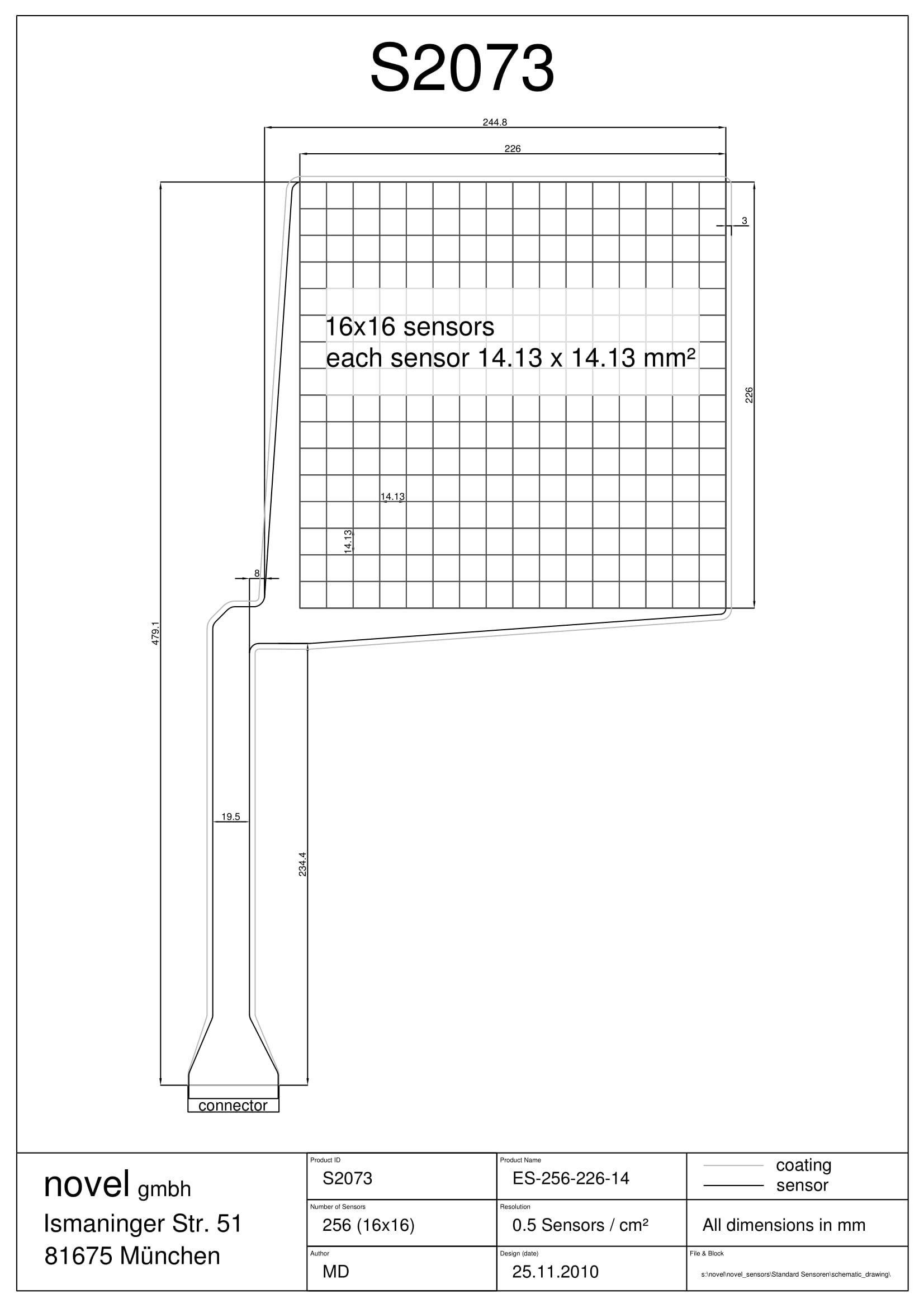

S2073 Elastisens ES-256-226-14226 x 22616 x 1614.125 x 14.1250.520 - 600< 0.8
S2074 Elastisens ES-256-320-20320 x 32016 x 1620 x 200.2520 - 600< 0.8

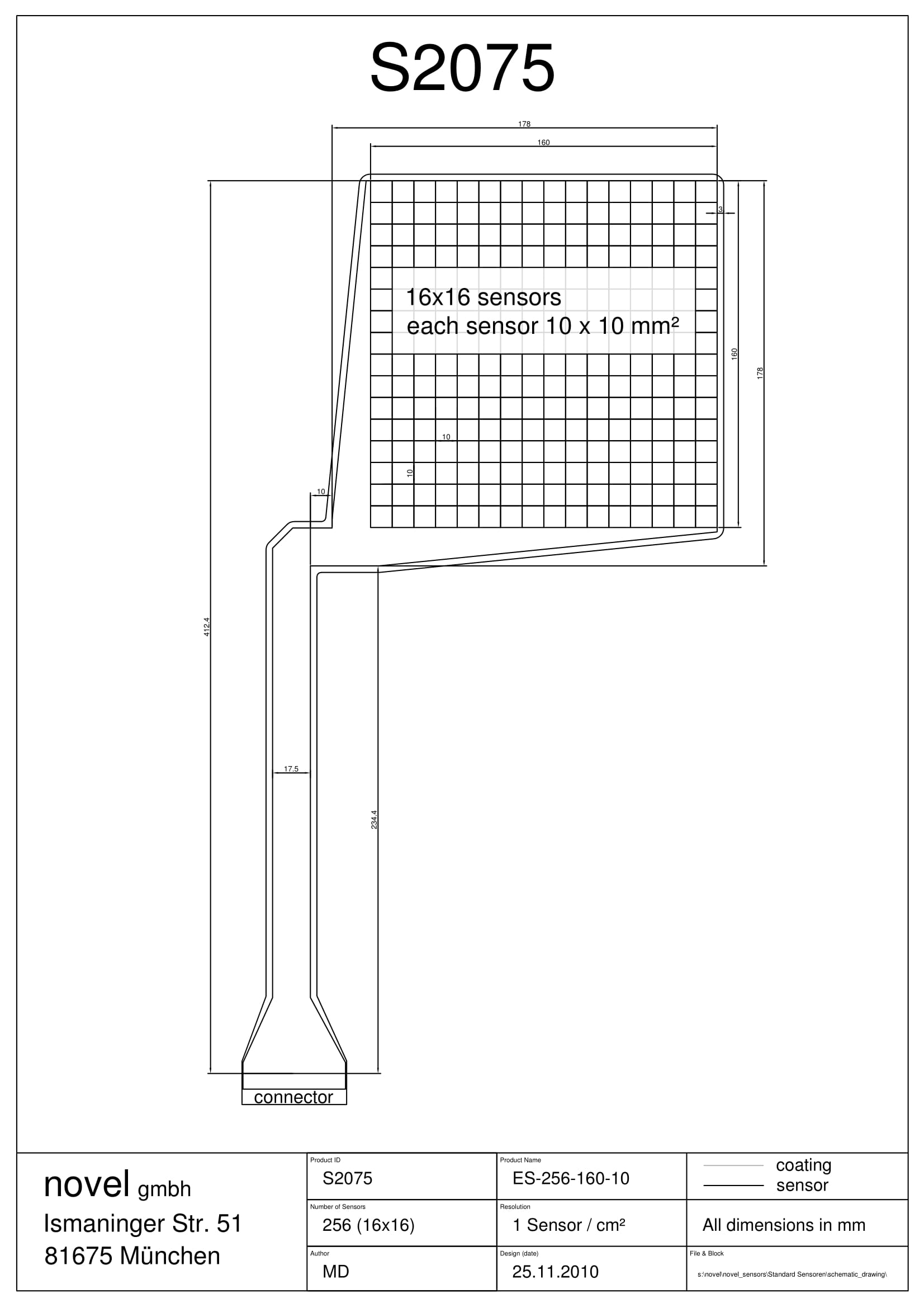

S2075 Elastisens ES-256-160-10160 x 16016 x 1610 x 10120 - 600< 0.8

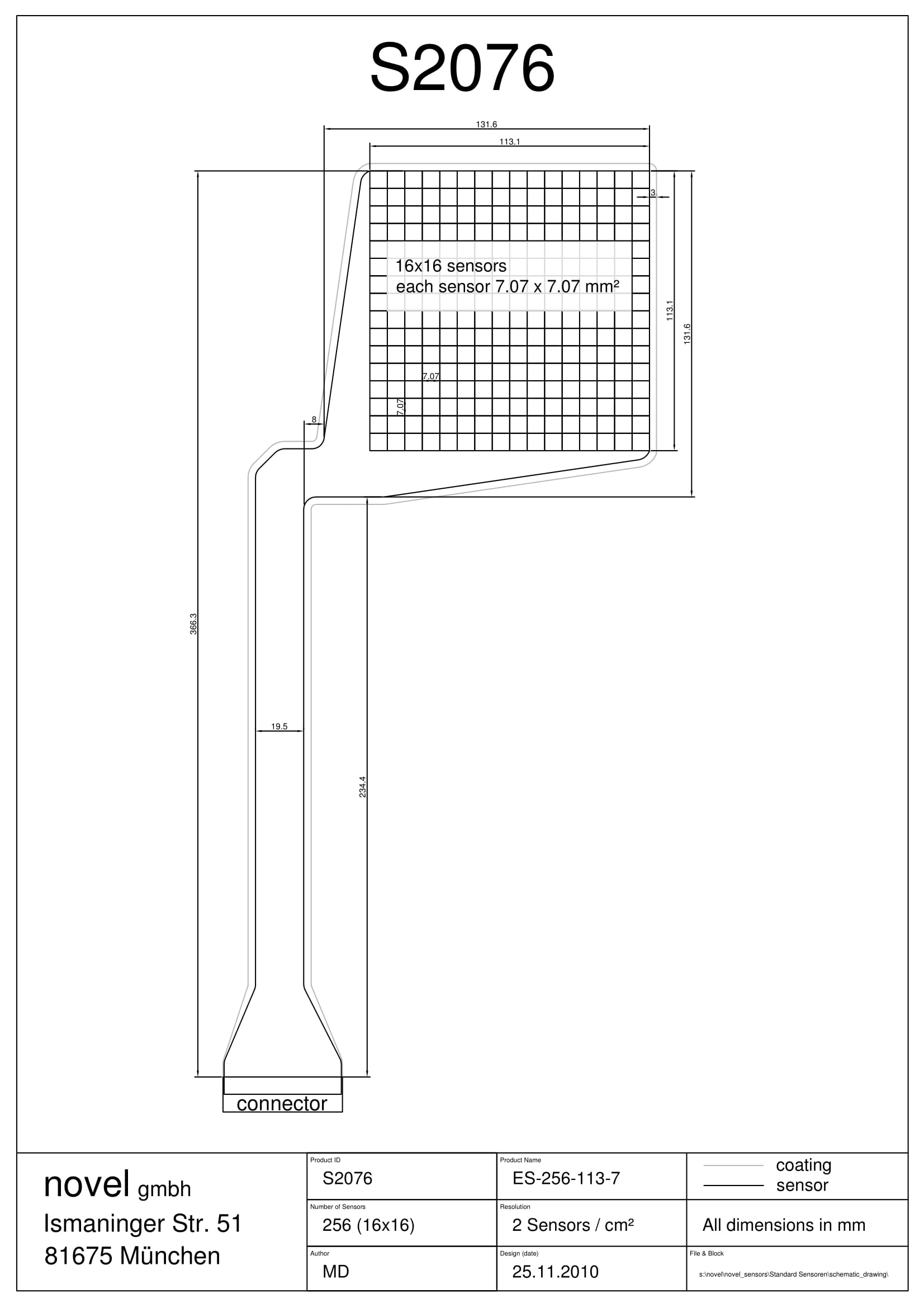

S2076 Elastisens ES-256-113-7113 x 11316 x 167.07 x 7.07220 - 600< 0.8

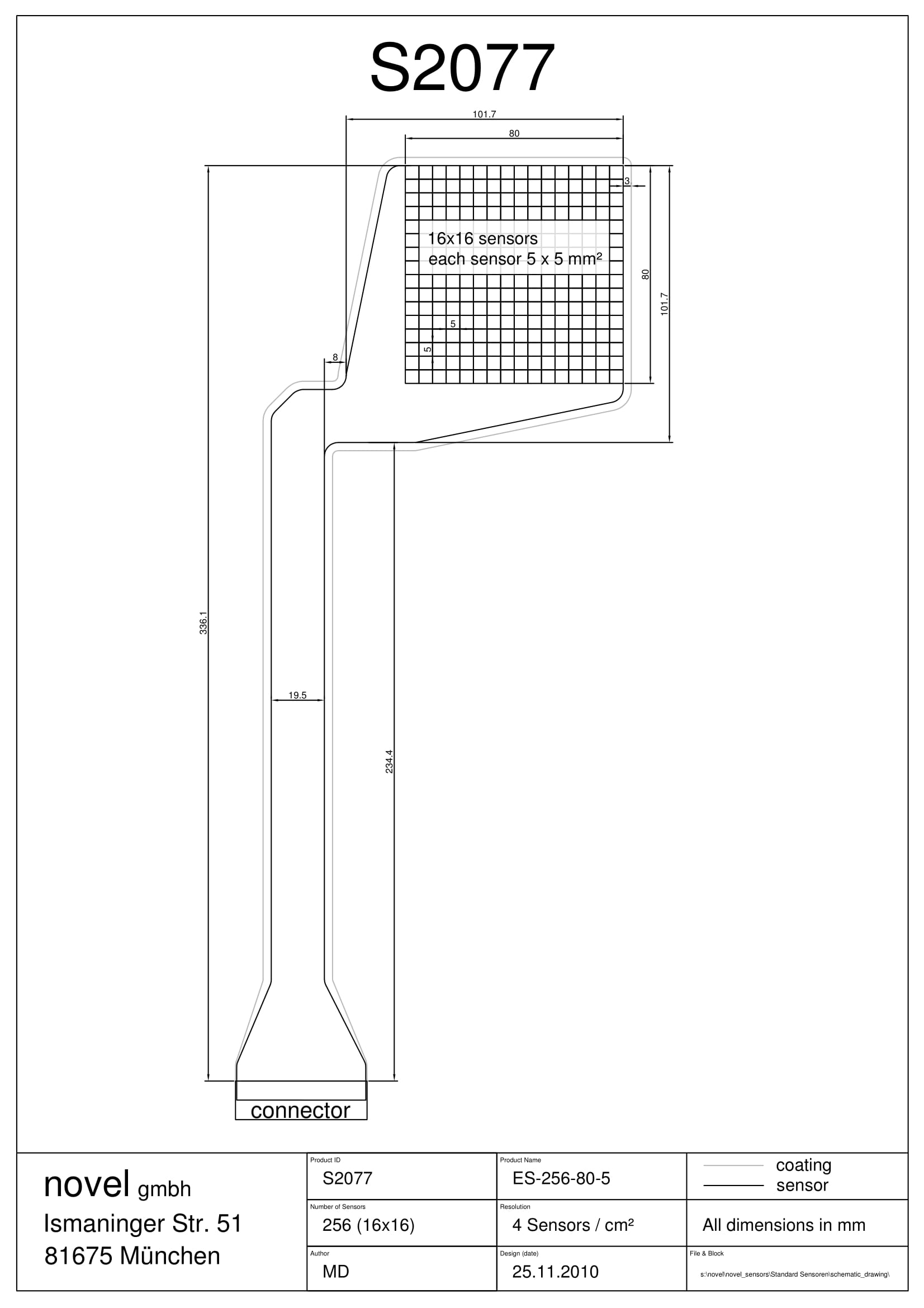

S2077 Elastisens ES-256-80-580 x 8016 x 165 x 5420 - 600< 0.8

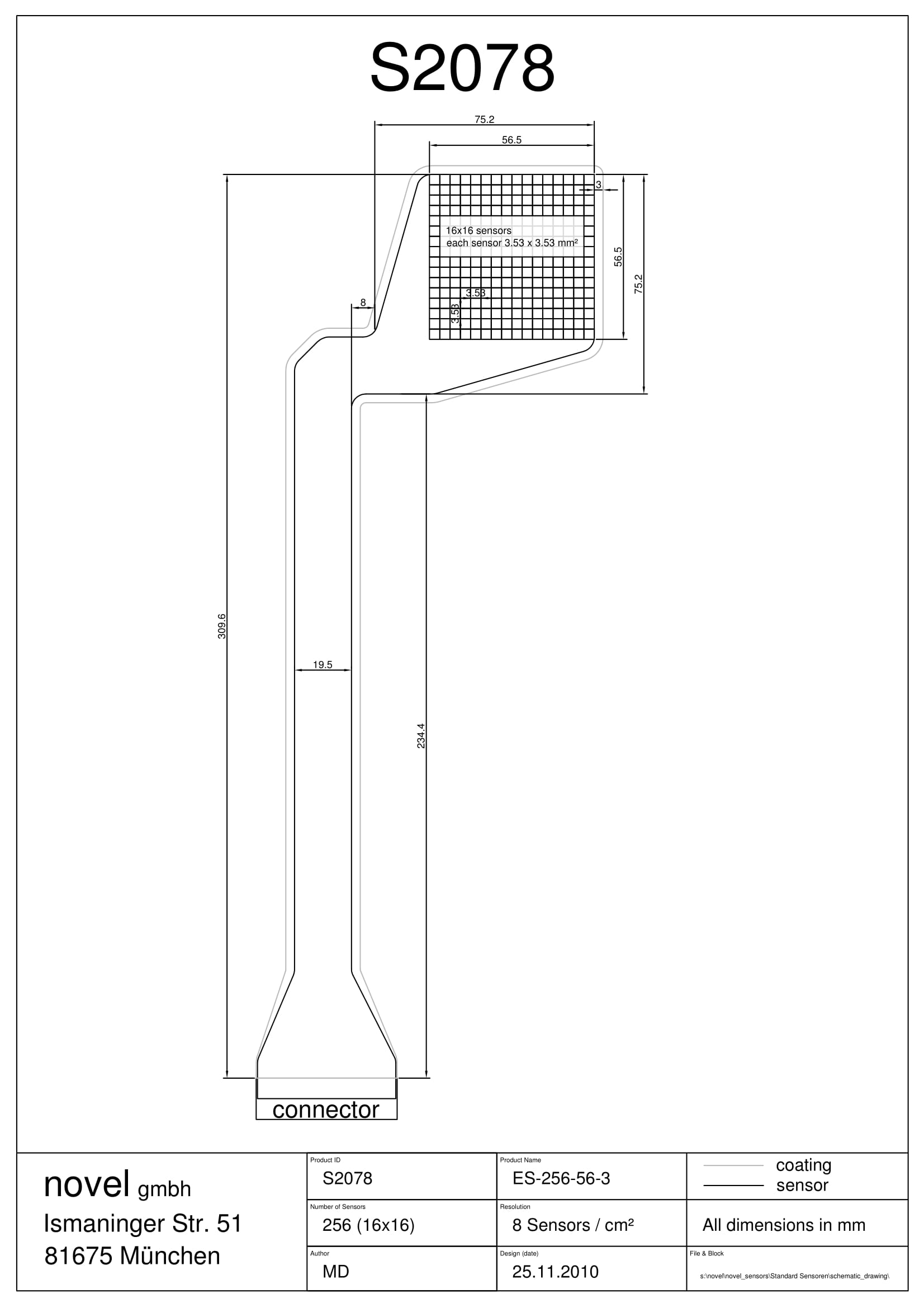

S2078 Elastisens ES-256-56-356.5 x 56.516 x 163.53 x 3.53820 - 600< 0.8

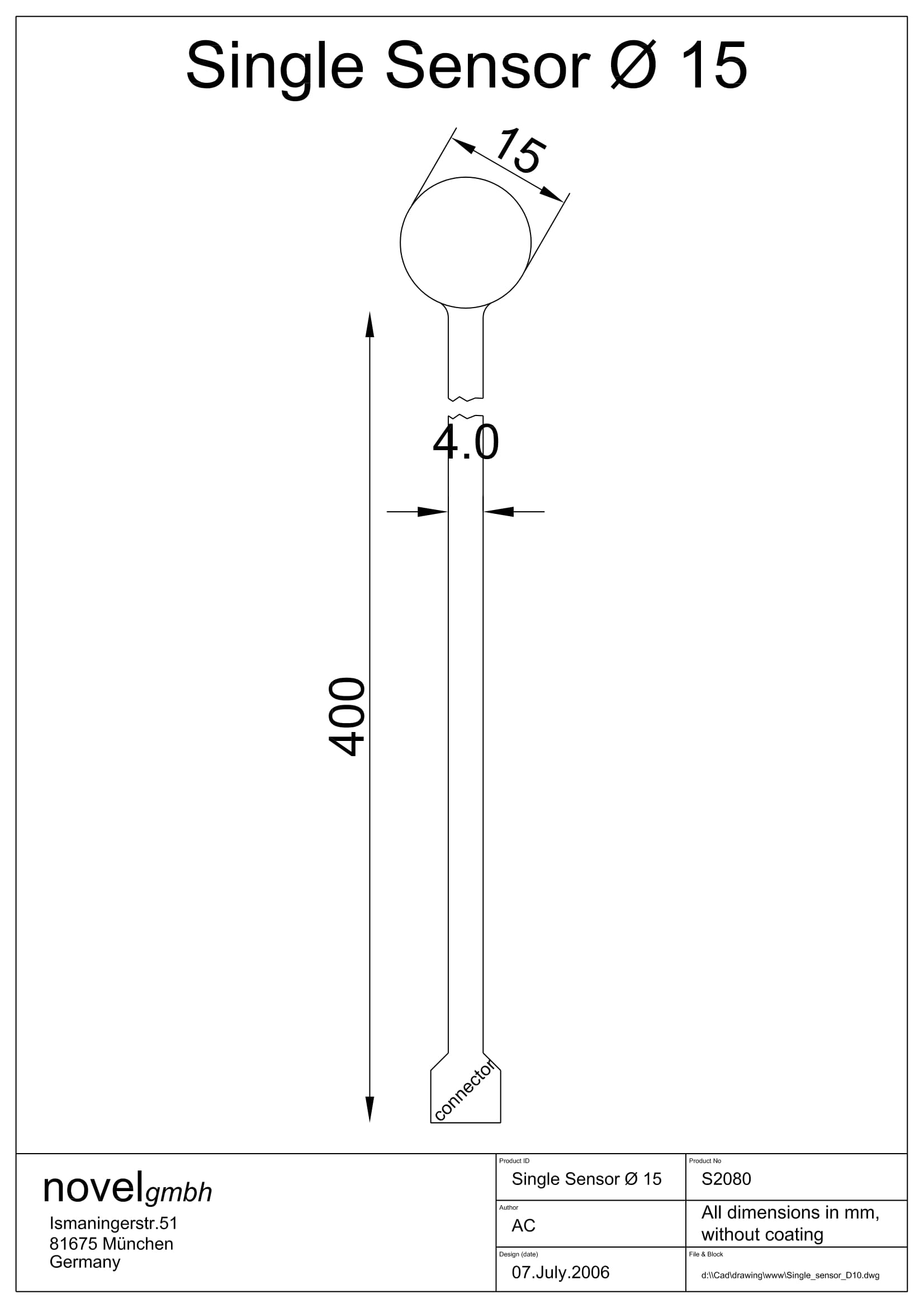

S2080 Single Sensor Ø151761Ø150.568181818181822 - 200< 1.2
S2080 LP Single Sensor Ø15 (LP)1761Ø150.568181818181820.5 - 60 (ULC)< 1.2
S2084 pliance sensor mat 12801280 x 64064 x 3220 x 200.252 - 60< 1.2

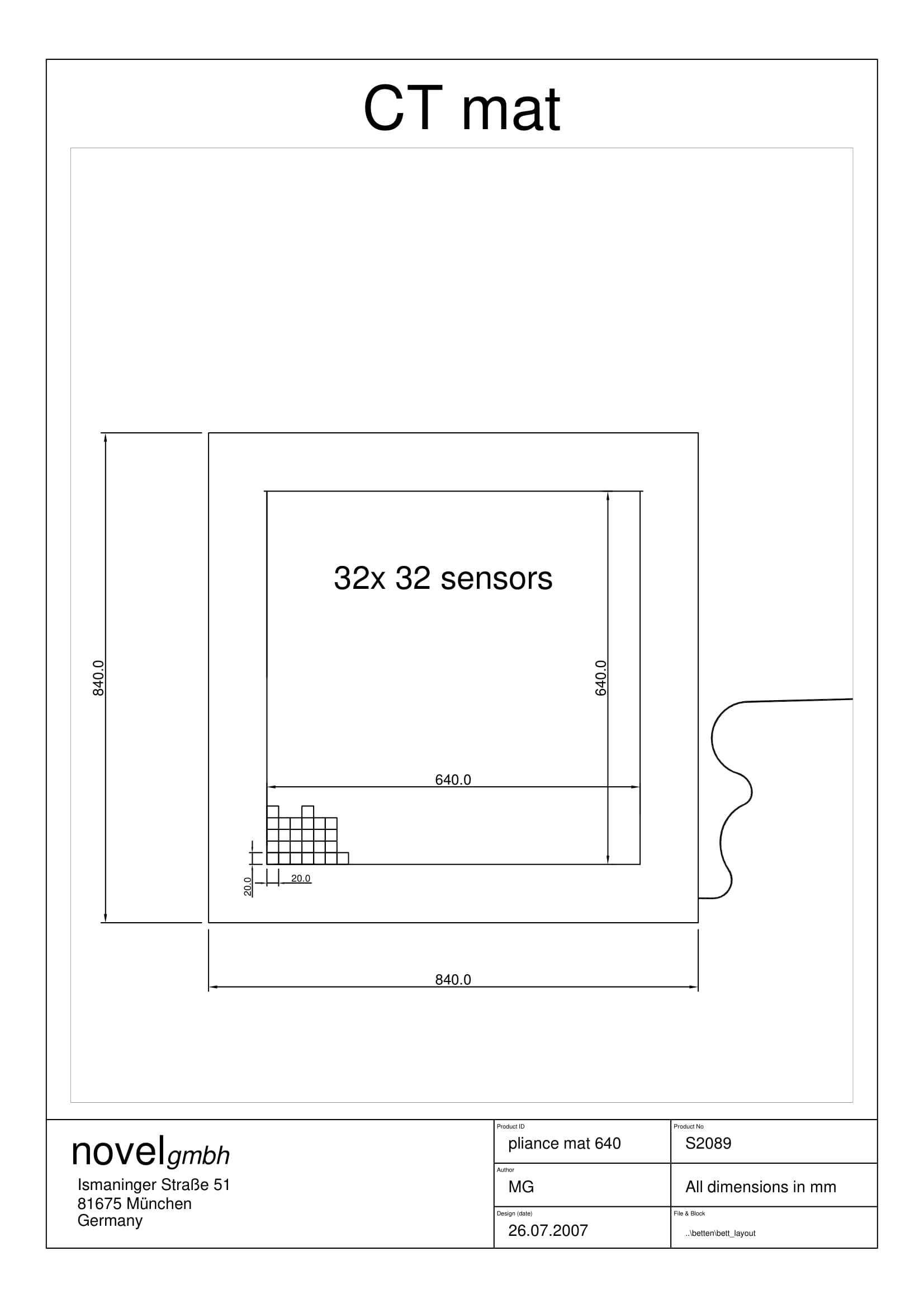

S2089pliance sensor mat 640640 x 64032 x 3220 x 200.252 - 60< 1.2

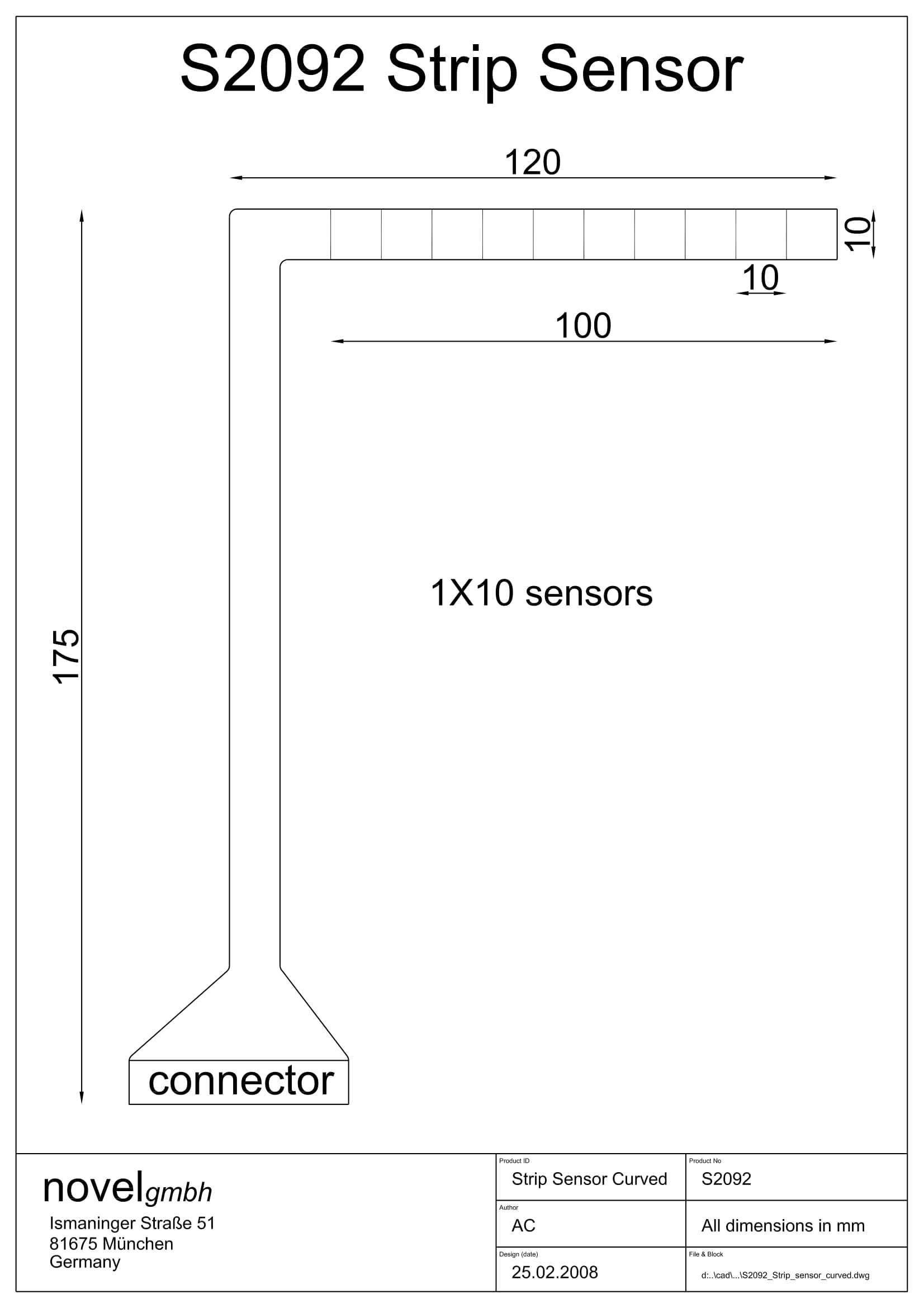

S2092 Strip sensor 1x10 CURVED100 x 1010 x 110 x 1012 - 200< 1.2
S2092 LP wpStrip sensor 1x10 CURVED (LP)100 x 1010 x 110 x 1011.5 - 60 (ULC)< 1.2

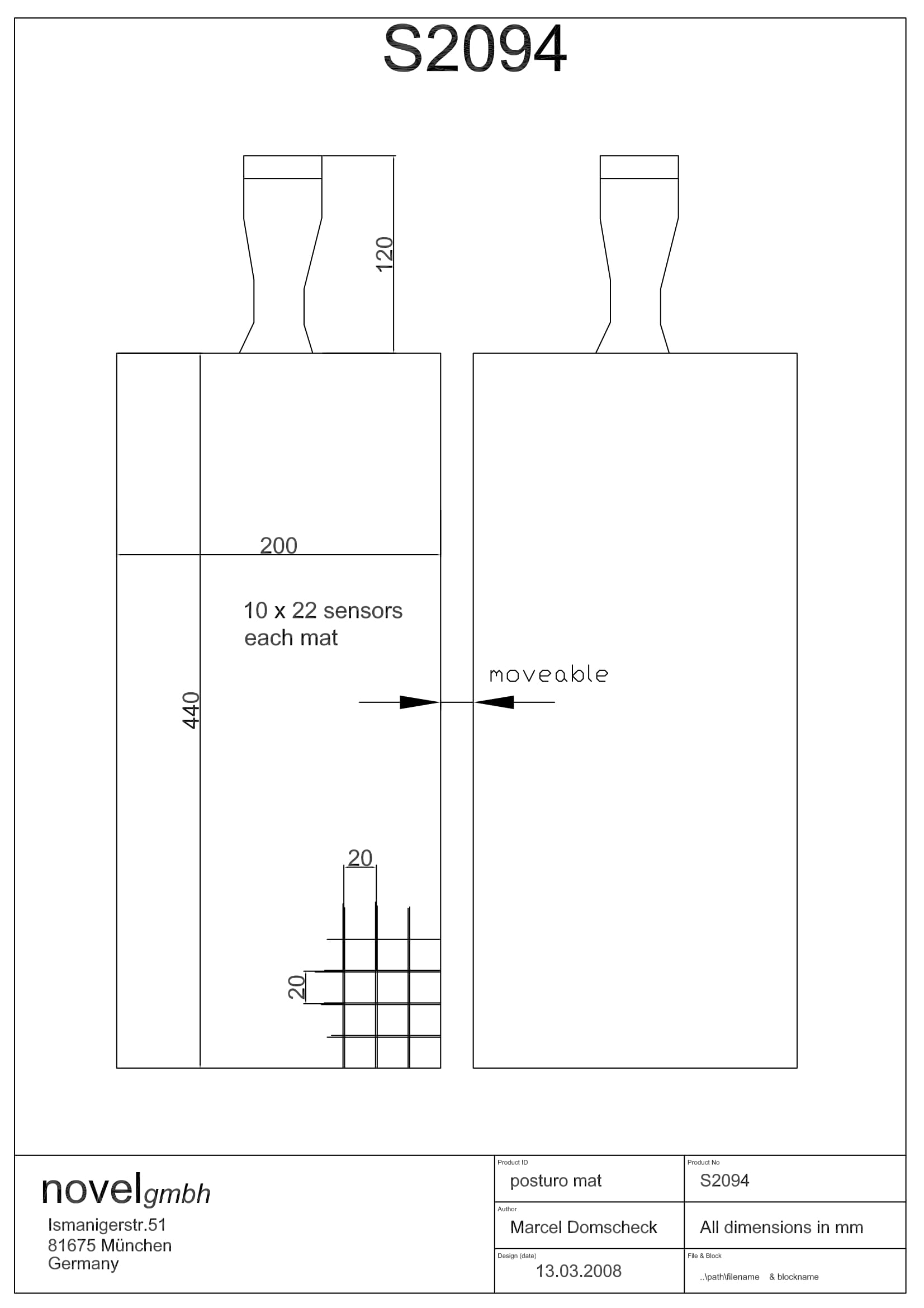

S2094 posturo mat (2 mats)(440 x 200) x 22 x (22 x 10)20 x 200.2510 - 400< 1.2

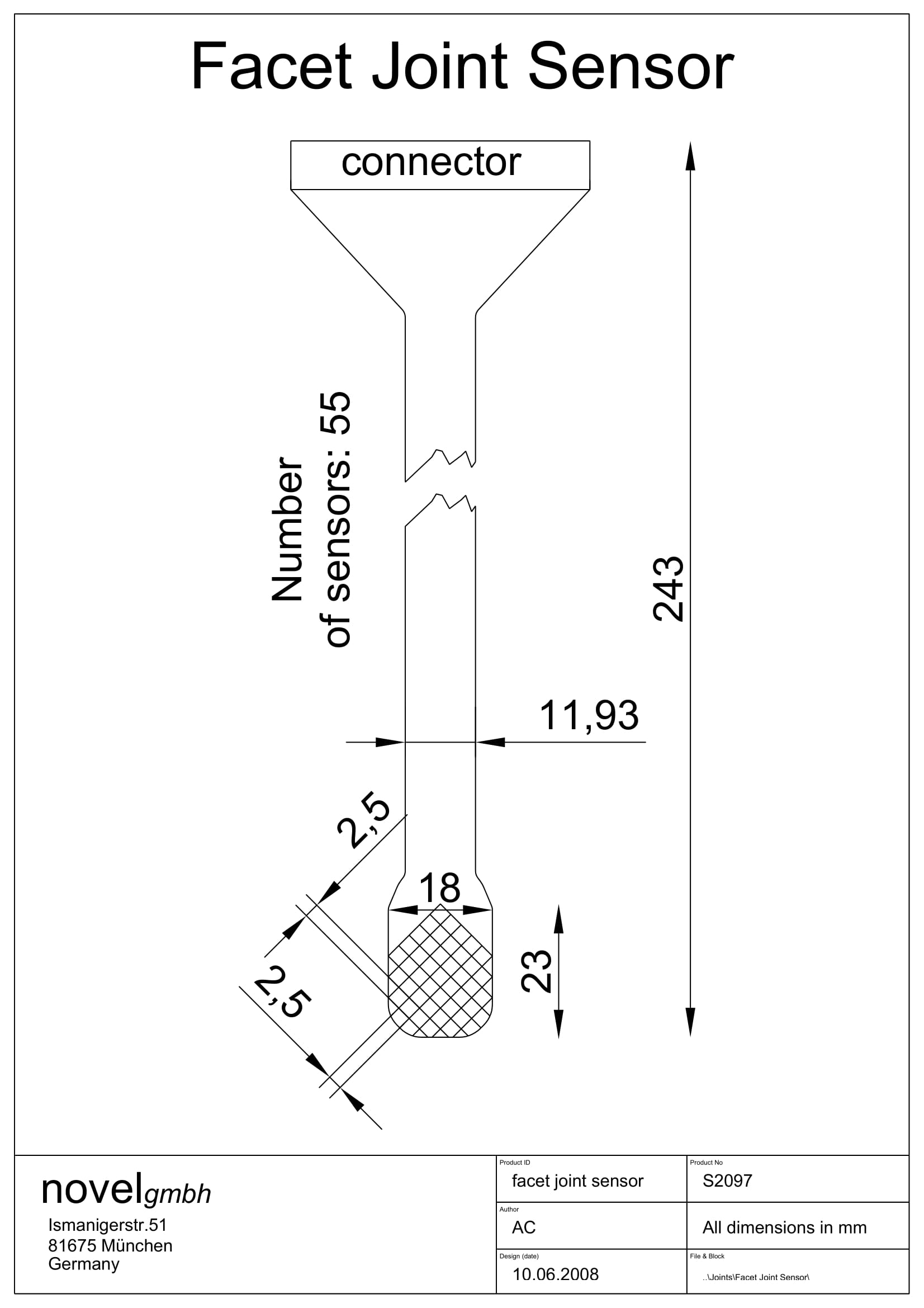

S2097Facet Joint Sensor294472.5 x 2.51640 - 1000< 1.2
S2098 Elastisens ES-45-150/30-10150 x 3015 x 310 x 10110 - 600< 1.0

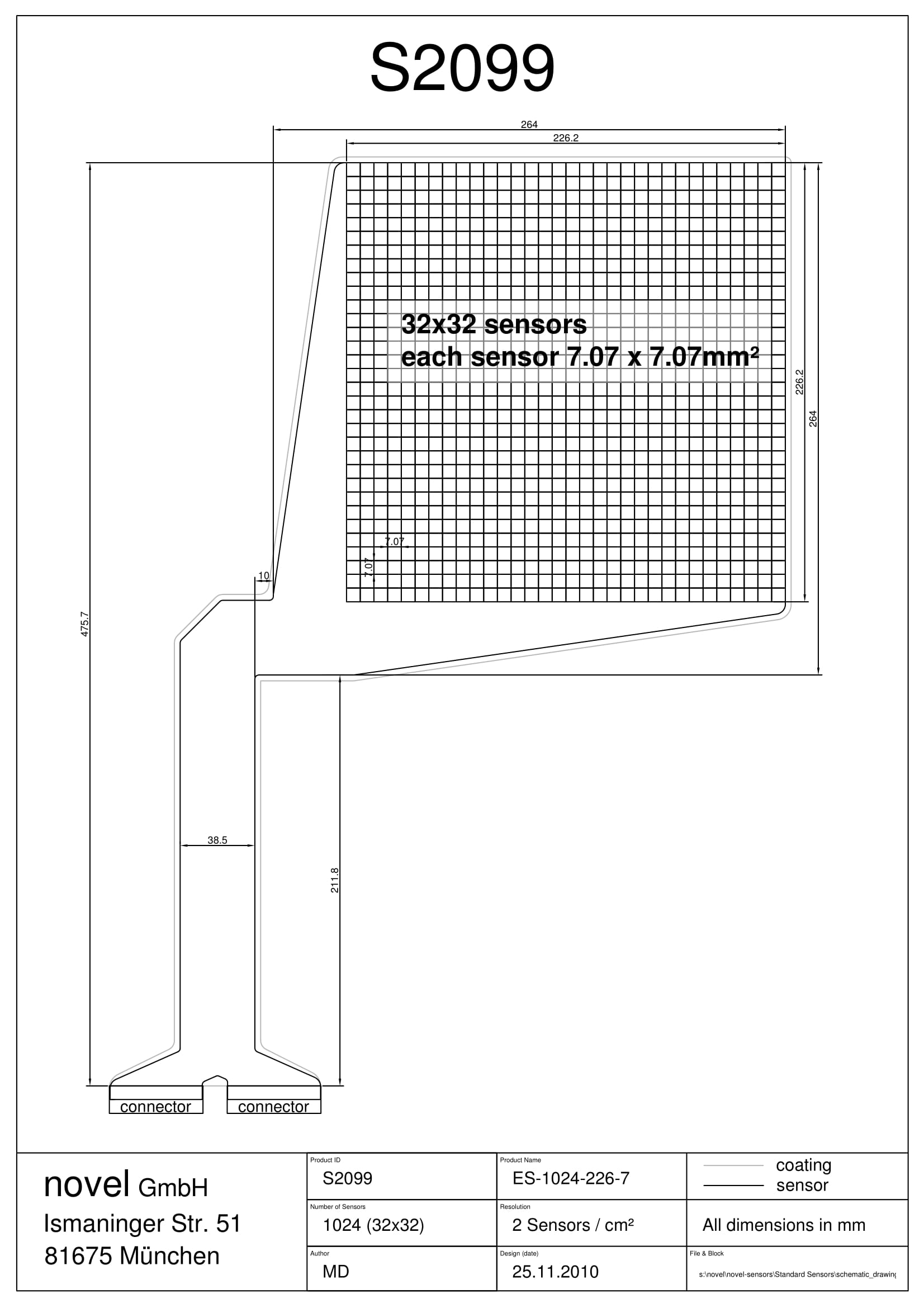

S2099 Elastisens ES1024-226-7226 x 22632 x 327.07 x 7.07210 - 600< 1.2

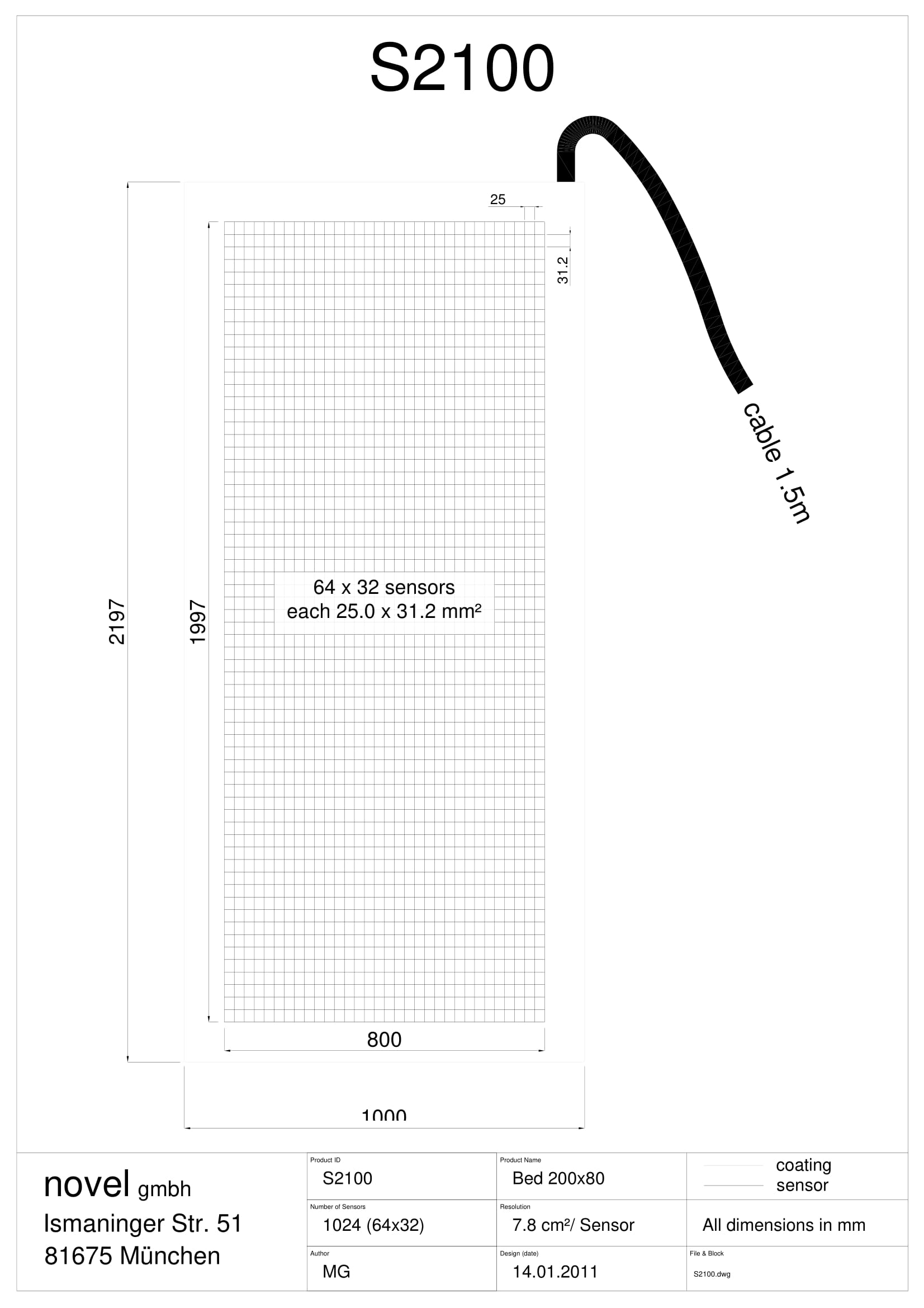

S2100 Bed 200x802000 x 80064 x 3231.25 x 25.00.1282 - 60< 1.2

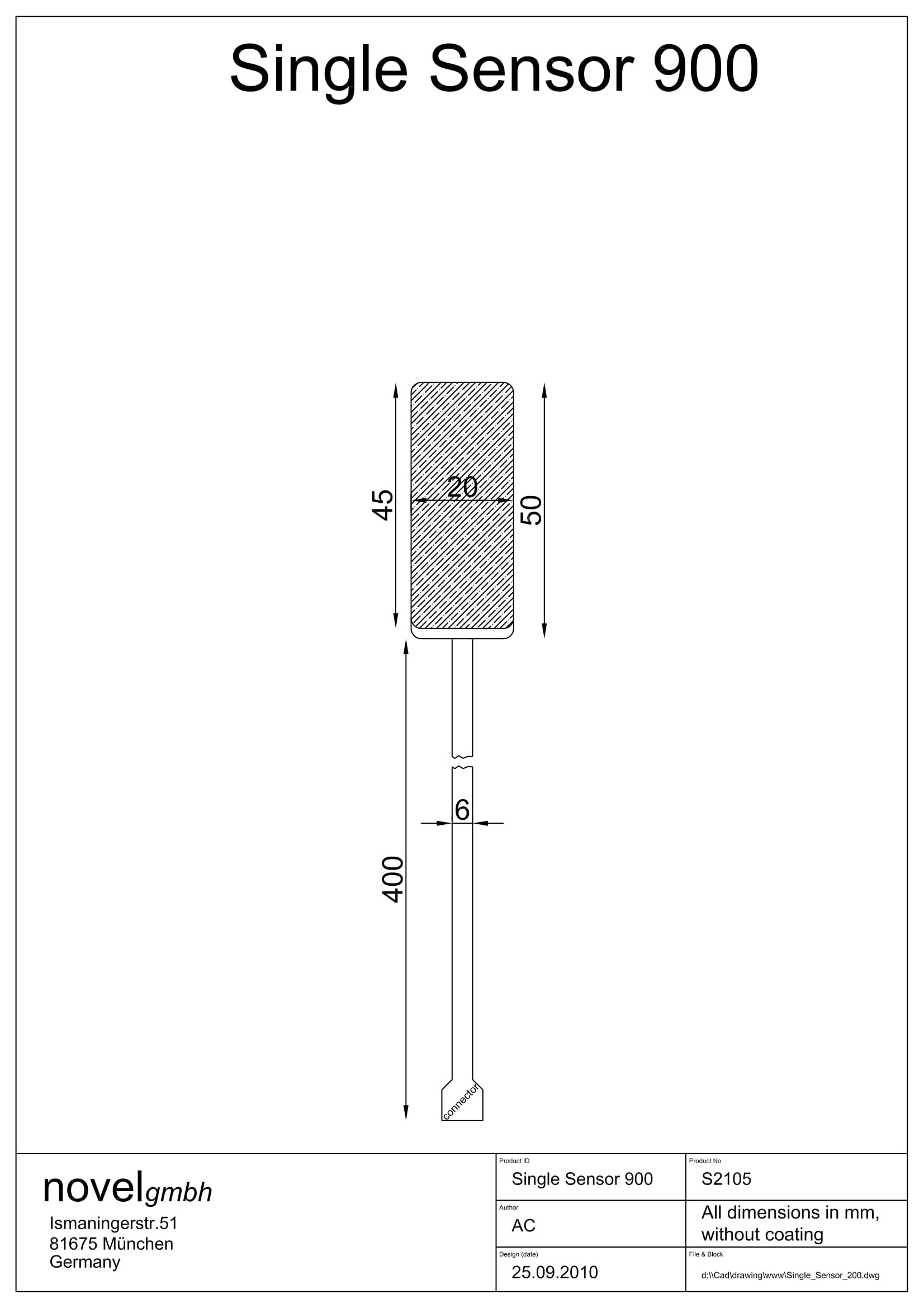

S2105 LP Single Sensor 900 (LP)900145 x 200.111111111111110.5 - 60 (ULC)< 1.0
S2107 seat crash test525 x 40016 x 1437.5 x 250.15 - 200

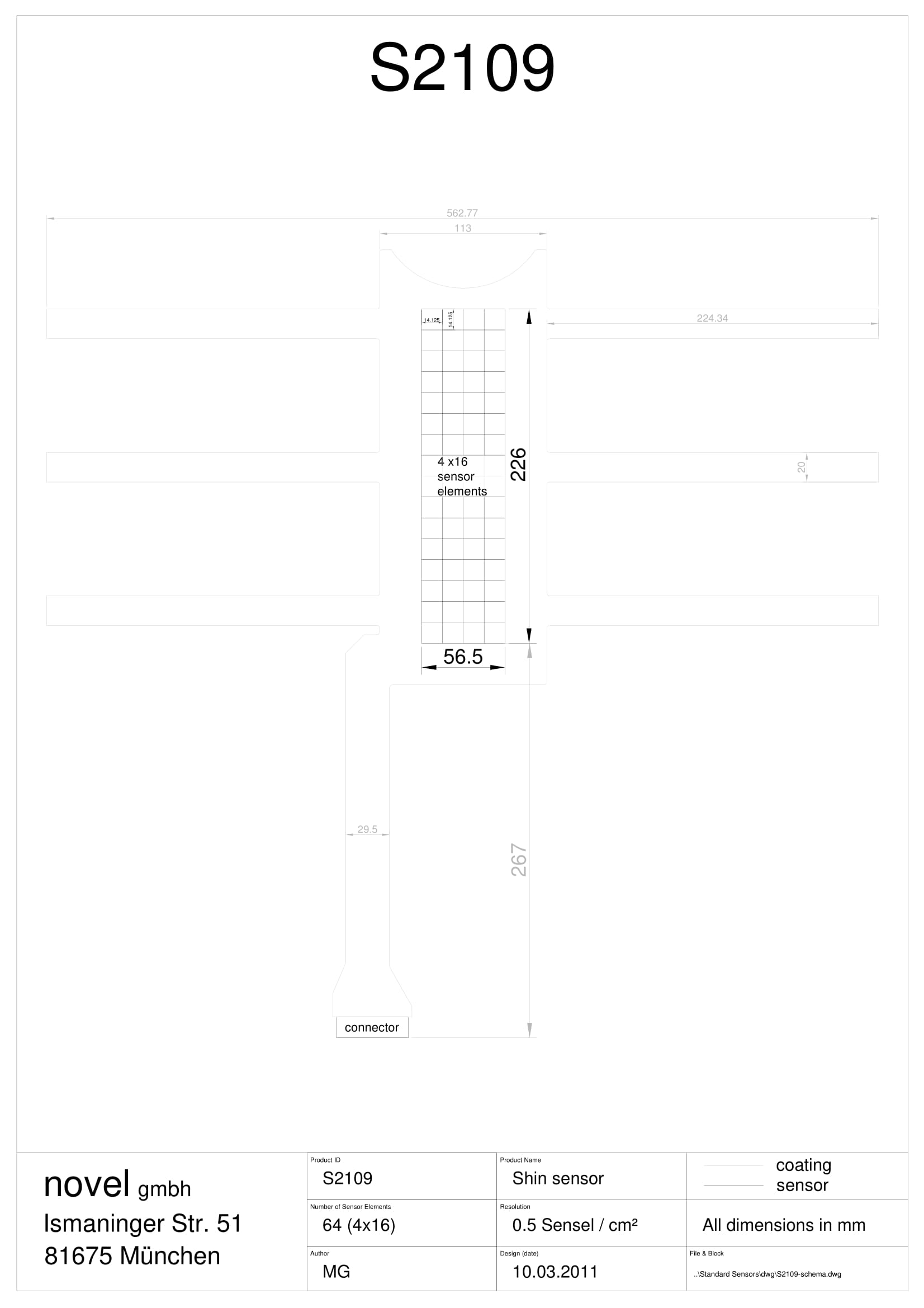

S2109 Shin sensor226 x 5616 x 414.125 x 14.1250.52 - 200< 0.8
S2110 Bed 100x801000 x 80032 x 3231.25 x 25.00.1282 - 60< 1.2

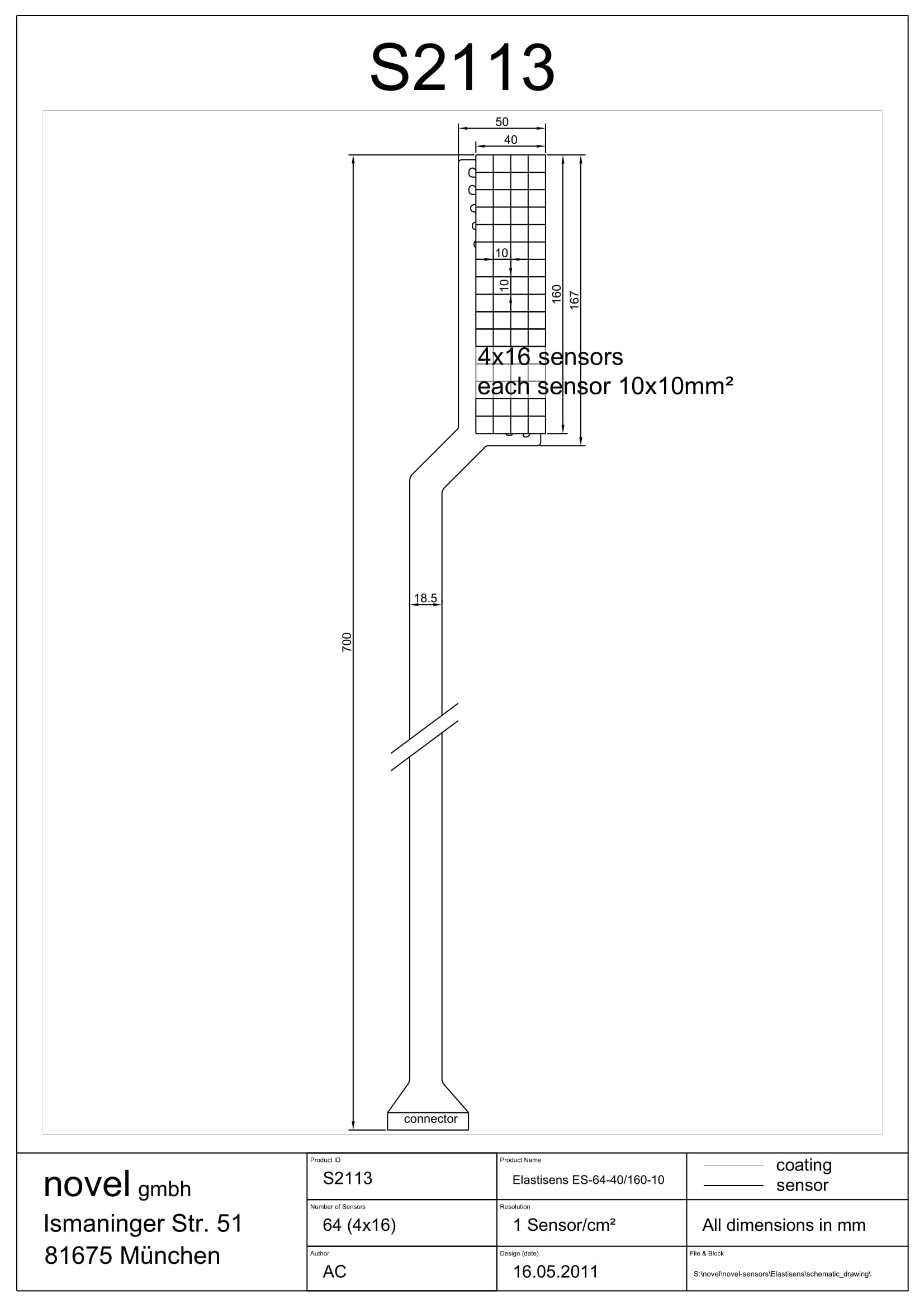

S2113 Elastisens ES-64-40/160-10160 x 4016 x 410 x 1015 - 200< 0.8

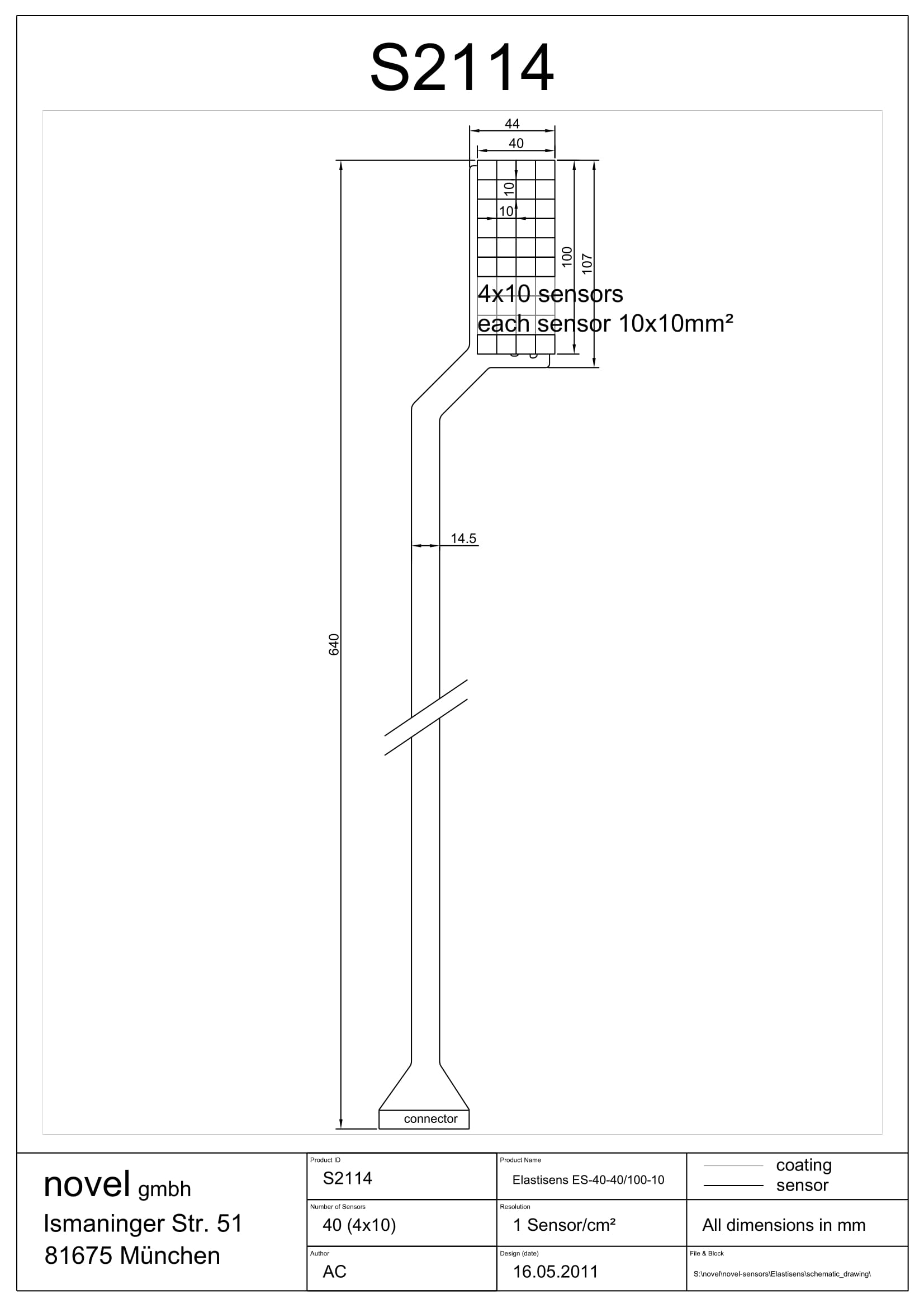

S2114 Elastisens ES-40-40/100-10100 x 4010 x 410 x 1015 - 200< 0.8
S2115 MatrixSensor 36-60/60-1060 x 606 x 610 x 1015 - 200< 0.8
S2118 Elastisens ES-FE-256-EL24.5392 x 39216 x 1624.5 x 24.50.172 - 60tbd
S2119 Elastisens ES-FE-512-EL10320 x 16032 x 1610 x 1015 - 240 or 15 - 600
S2121 Elastisens ES-FE-1024-EL15.8506 x 50632 x 3215.8 x 15.80.42 - 60tbd
S2125 1 octave piano-Single sensors195 x (80 x 7)
7 x (90 x 10)
7 x (43 x 20)
1 - 60tbd
S2126 Elastisens ES-143-130/110-10130 x 11013 x 1110 x 10120 - 600
S2127 Elastisens ES-256-160-20320 x 32016 x 1620 x 200.252 - 60
S2128 Elastisens ES-160-110/110-10160 x 11016 x 1110 x 10120 - 600tbd
S2129 Elastisens ES-256-160-10160 x 16016 x 1610 x 10120 - 600
S2131 LG Display750 x 4564 x 315 x 11.720.5720 - 12000.9
S2132 Elastisens ES-FE-64-EL10 (Palm)80 x 808 x 810 x 10120 - 600tbd
S2133 Manugraphy®226 x 22632 x 327.07 x 7.07210 - 600< 1.2
S2134 Single Sensor ES 17x17289117 x 170.3460207612456720 - 600tbd
S2136Single Sensor Ø05201Ø52 - 200< 1.2
S2136 LPSingle Sensor Ø05 (LP) 201Ø50.5 - 60 (ULC)< 1.2
S2138 Elastisens ES-FE-1024-EL14.1452 x 45232 x 3214.125 x 14.1250.52 - 100
S2139 Elastisens ES-FE-512-EL14.1452 x 22632 x 1614.125 x 14.1250.52 - 240
S2141 CT matxxxxxxxx
S2142 Elastisens ES-FE-256-EL10 320 x 8032 x 810 x 1012 - 100
S2143 pelvic floor73 x 7310 x 107.07 x 7.0720.5 - 100< 0.8
S2144 Elastisens ES-FE-128-EL1080 x 16016 x 810 x 101
S2147 Single Sensor 10x10100110 x 10120 - 600tbd
S2148 Elastisens ES-FE-128-EL10160 x 4016 x 410 x 101
S2149 pedar pad160 x 708 x 720 x 100.515 - 600
S2149 LP pedar pad160 x 708 x 720 x 100.55 - 240
S2150 Elastisens ES-FE-160-EL10160 x 10016 x 1010 x 10120 - 600
S2151 ES-FE-1024-EL15.8 split506 x 50632 x 3215.8 x 15.80.42 - 60tbd
S2152 Elastisens ES-FE-160-EL8160 x 8016 x 810 x 10120 - 600
S2153 Single Sensor Ø203141Ø200.318471337579622 - 200< 1.2
S2153 LP wpSingle Sensor Ø20 (LP)3141Ø200.318471337579620.5 - 60 (ULC)< 1.2
S2154 Elastisens ES-FE-128-EL14.1226 x 11316 x 814.125 x 14.1250.52 - 240
S2155 Saddle english textil600 x 200
(each mat)
2 x (16 x 8)37.5 x 250.1072 - 603.5
S2156 Elastisens ES-1024-452-14452 x 45232 x 3214.125 x 14.1250.52 - 200< 0.8
S2158 Elastisens ES-FE-240-EL14.1
derived from S2140
424 x 11330 x 814.125 x 14.1250.52 - 240
S2159Surfboard392 x 3028 x 649 x 490.0420 - 1500tbd
S2160IOP Matte for KIOP150 x 30028 x 2910.28 x 5.281.825 - 300< 1.2
S2161derived from S2155450 x 200
(each mat)
2 x (12 x 8)37.5 x 250.1072 - 603.0
S2162IOP Matte 169 x 32932 x 3210.28 x 5.281.825 - 300< 1.2
S2163Strip Sensor100 x 5510 x 1012 - 200< 1.2
S2164tbd100 x 12010 x 1210 x 10120 - 600< 0.8
S2165derived from S2029253 x 25316 x 1615.8 x 15.80.42 - 60< 1.2
S2166derived from S2138253 x 25316 x 1615.8 x 15.80.42 - 60< 1.2
S2167derived from S2129160 x 10016 x 1010 x 10120 - 600tbd
S2168derived from S2129100 x 8010 x 810 x 10120 - 600tbd
S2169Hatchbacksensortbdtbdtbdtbdtbdtbd
S2170derived from S213230 x 603 x 610 x 10120 - 6002.3
S2171derived from IOP Matte 169 x 329862 (preliminary)10.28 x 5.281.825 - 300< 1.2
S2172CT mat curvebeam LLCxxxxxxxx

Sensors by outline / drawing:
